Slurry spreader boom Farmline

drip hose

Overview

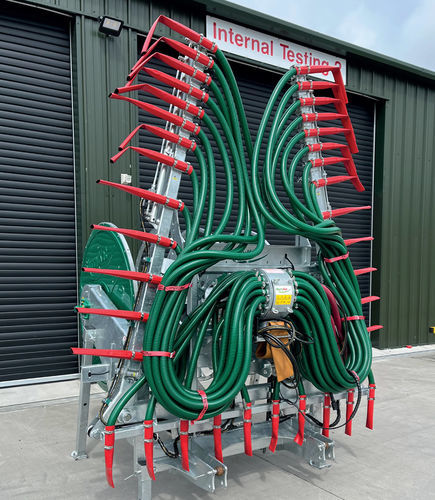

Farmline Dribble Bars provide a compact, lightweight umbilical slurry/manure spreading solution combining up to 600 metres of layflat hose with a 7.5-metre dribble bar. The system is designed for efficient single-operator use and delivers precise surface application with minimal splash and reduced nutrient losses.

Application & Benefits
Designed for contractors and farmers managing slurry and manure, the Farmline system integrates with SlurryKat mixing units to reduce fuel use and soil compaction. It improves spreading accuracy and operational productivity while supporting environmental performance.

Design Highlights
The Farmline range uses the Super-flow™ 40mm internal delivery hoses inserted into 50mm drop hoses and secured with a patented clamping bracket. The 38mm distributor outlets allow unrestricted flow from the distributor head to the ground, ensuring reliable, trouble-free delivery.

Advantages of 40mm Super-flow™ Hoses

• Lower risk of blockages compared with competitor 50mm hoses.
• Improved flow rates and more consistent spreading performance.
• Reduced surface exposure and lower ammonia and nutrient losses versus systems that cause splashing.
• Eliminates internal steel tube connectors that can corrode or snag fibres.

Optional / Bespoke Features

• Rear tow hitch.
• Non-return valve holder.
• Split reeler with dual independent drives.
• Fully galvanised construction.

Experience
SlurryKat has developed and refined dribble bar systems through field testing since first introducing dribble bars in 2007, using contractor feedback to validate design choices and environmental advantages.

Technical specifications

• Model / Series: Farmline Dribble Bars
• Layflat hose length: up to 600 metres
• Dribble bar length: 7.5 metres
• Delivery hose internal diameter: 40mm (Super-flow™)
• Distributor head outlet diameter: 38mm
• Operator requirement: single operator capable
• Typical use: umbilical slurry/manure spreading for contractors and farmers
• Compatible with: slurry/manure mixing systems
• Optional features: rear tow hitch, non-return valve holder, split reeler with dual independent drives, fully galvanised construction
• Design benefits: compact, lightweight, efficient, reduced blockages, improved environmental performance
