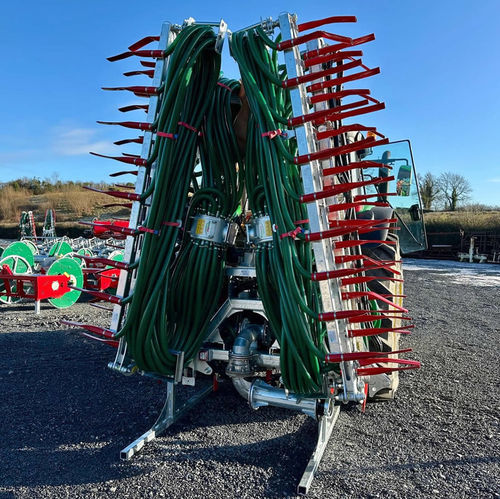

Slurry spreader boom Premium Plus™

drip hosefolding

Overview
The 24 metre Premium Plus™ dribble bar offers a lightweight, extremely compact and high performance design. Its vertical folding concept delivers a low transport height and zero tail swing while maintaining robust field performance.

Key Benefits

• Lightest vertical folding 24m dribble bar on the market at approximately 1890 kg.
• Vertical folding design provides transport height under 3.5 metres and zero tail swing.
• Operable with a 150 hp tractor, reducing soil compaction and fuel consumption compared with competitors requiring 250–300 hp.
• Available alternatively in a flexi shoe configuration.

Features

• Independent boom control for working positions across varying terrains and slopes.
• Advanced chopping macerator distributor with ventilation for precision slurry distribution and steady flow on the booms.
• Super-flow™ delivery system using 40 mm internal diameter slurry delivery hoses, inserted directly into 50 mm drop hoses and retained by a patented clamping bracket to avoid flow restrictions and blockages.
• Full ISOBUS controls as standard to manage hydraulic controls and flow metering from a single tractor terminal.
• Designed and tested in-house to be compact, manoeuvrable around the farm and close to the tractor due to vertical folding.

Performance & Environmental Advantages
The 40 mm Super-flow™ hoses reduce blockages, prevent splashing and minimise surface exposure to air, lowering ammonia and nutrient losses and improving precision of application. Extensive field testing since 2007 supports the use of 40 mm hoses over 50 mm alternatives.

Operational Notes

• Can be operated with tractors from 150 hp, enabling use with lower power rear lift and reducing fuel use.
• Vertical folding mechanism gives exceptional transportability and zero tail swing.
• ISOBUS compatibility enhances operator efficiency and consolidates control onto a single display.

Technical specifications

• Approximate weight: 1890 kg
• Working width / nominal: 24 metres (model name indicates 24 m option)
• Transport height: under 3.5 metres (vertical folded)
• Folding: vertical folding with zero tail swing
• Minimum recommended tractor power: 150 hp
• Delivery hoses: Super-flow™ 40 mm internal diameter delivery hoses
• Distributor: advanced chopping macerator distributor with ventilation
• Controls: full ISOBUS controls as standard
• Optional configuration: flexi shoe available
