Compacting roller TITAN SIMPLE

gradingpackerCambridge

Overview

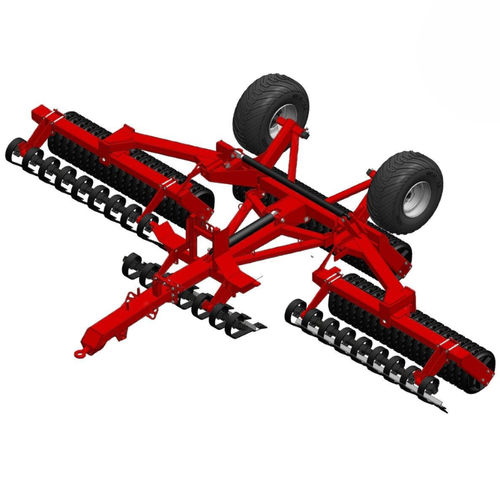

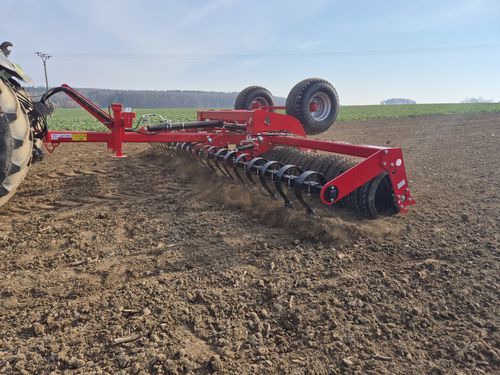

The TITAN SIMPLE roller is a semi-mounted field roller designed for seedbed preparation and soil consolidation in arable farming. Based on the Titan concept, it features a simplified, lighter design suitable for tractors from 65 kW.

Design and operation
The machine is divided into three independently suspended working sections mounted on a central frame, ensuring close ground contact and the ability to follow uneven terrain, including negative angles. Hydraulic folding enables transition between working and transport positions. Hydraulic circuits allow folding and engagement/disengagement of the levelling bar directly from the tractor cab.

Key benefits of the TITAN SIMPLE

• Low weight (approx. 3,690 kg), enabling use with lower-power tractors (from 65 kW).
• Hydraulic operation for folding and levelling-bar height adjustment.
• Improved ground contour following thanks to the three-section frame and independently suspended sections.
• TitanLoc axial clamping secures cast-iron Cambridge ring segments on the shaft.

Applications

• Seedbed preparation
• Rolling after sowing to improve seed-to-soil contact
• Levelling rough furrows after ploughing
• Soil consolidation to support seed germination

Specifications table
TITAN SIMPLE | 630
Working width (cm): 630
Transport width (cm): 231
Weight*: 3 690
Minimum power requirement (kW/hp): 65/90
Number of working sections: 3
Working speed (km/h): 8 - 14
Hitch: 40 mm towing eye
Tyre size (standard): 11/80-15,3

Technical specifications

• Model: TITAN SIMPLE
• Working width: 630 cm
• Transport width: 231 cm
• Machine weight (with C510/C530 rings and levelling bar): 3 690 kg
• Minimum power requirement: 65 kW / 90 hp
• Number of working sections: 3
• Working speed: 8 - 14 km/h
• Hitch: 40 mm towing eye
• Standard tyre size: 11/80-15,3
• Key systems: TitanLoc axial clamping for Cambridge ring segments
