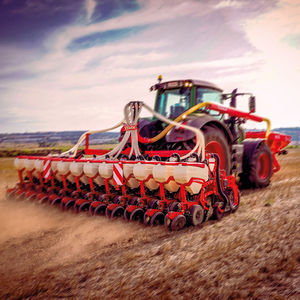

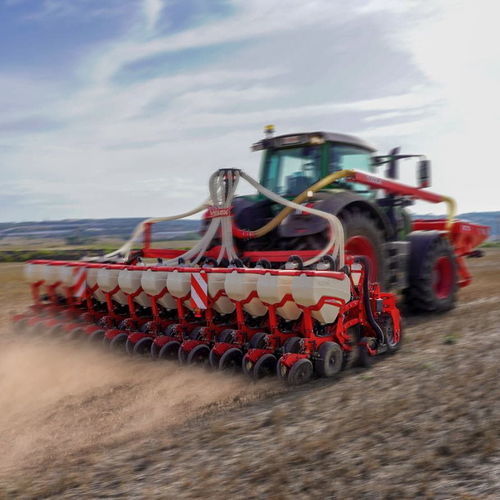

Hydraulic precision seed drill VELOX TV 330/9

disccoulterfolding

Overview
New high performance planters’ range. Designed to maximize the yield potential by planting with perfect seed singulation and spacing while maintaining a constant depth and seed-to-soil contact.

Key features (row unit)

• Hydraulic downforce maintaining consistent depth with up to 350kg downforce per row.
• Heavy duty parallel linkage with reinforced cast iron arms for increased durability and reliability.
• Floating row cleaners: exceptional residue cleaning stars with optional side wheels for improved quality and stability.
• Unique 15’’ double disc openers with 9º between discs for better seed placement with less compaction and soil disturbance.
• Ground wheels and opener disc bearings with reinforced triple seals for extra protection, longer life and lower maintenance costs.
• Intermediate press wheels press seeds into the bottom of the furrow ensuring constant depth and seed-to-soil contact for faster and uniform emergence.
• Microgranular products hoppers: up to two 20L hoppers, Isobus-compatible electric drives with easy-to-adjust universal auger meter and up to three application points.
• Large capacity seed hoppers 70L each, protected by moisture-tight covers with locks for less refills and more productivity.
• Accurate and easy-to-use vacuum meters with self-adjusting seed singulator and ejector wheel for reliable high-speed, high-rate metering.
• Exclusive high-torque stepper motors for a wide range of working speeds to ensure high quality seed distribution across the field.

Hydraulic downforce (system)
To maintain uniform depth VELOX is equipped with a hydraulic downforce system with hydraulic cylinders ensuring equal pressure applied to every row, regardless of changing field conditions. Combined with the tractor-to-planter Adaptive Weight Transfer system it can deliver up to 350kg pressure per row — sufficient to work in most challenging environments.

Seed meter
New vacuum seed meter by Precision Planting achieves accuracy of ≥99%. Proven performance for metering various seed types and sizes. The meter is simple to adjust and maintain; the seed singulator does not require manual adjustments. Includes a seed ejector wheel to clean disk holes and avoid skips.

Micro-products and fertiliser
Up to two micro-product hoppers per row (20L each) with ISOBUS electric motors, offering application either in-furrow (between closing wheels or seed openers) or over the furrow behind closing wheels. Fertiliser system is high-capacity with choice of frontal or planter-mounted hoppers; fertiliser metering is modular volumetric meters with ISOBUS electric drives. Fertiliser distribution is by air flow with a hydraulic driven turbine.

Tailored choices
Wide range of options to specify the planter for conventional, reduced tillage and direct seeding practices. Options include row cleaners, side wheels, turbodisc + row cleaners, hydraulic row markers and multiple opener configurations.

Multimedia & media
Product imagery includes multiple high-resolution photos and animated elements showing the row unit design, distribution and micro-product systems. A product video (mp4) is embedded in the product details carousel.

Telecopic models technical specs (summary)
MODELS / Frame type / Number of rows / Row spacing / Seed meter / Seed hoppers / Row unit downforce / Weight transfer / Closing system / Fertilizer system / Transport width
Examples include models: 300/6 (45-75cm), 300/6 (50-80cm), 300/7 (45-60 & 70-80), 300/8 (40-75cm), 300/9 (40-55 / 8F65-75), 300/12 (45-50cm or multiple configurations).

Foldable models technical specs (summary)
Foldable models (PF 300/8, PF 300/9, PV 300/12) feature foldable chassis, Cat III hitch, transport width 3.0m, ISOBUS electric seed drive, 70L seed hoppers, 20L micro hoppers and hydraulic turbine drive.

Notes on planting performance
The quality of seed dosage has a direct impact on final yield. Each double seed reduces the yield potential of affected plants by 40-80%, omissions can represent a loss of up to 100% for affected positions. Each percentage improvement in seed singulation can increase yield potential by ~1% or more. VELOX aims to achieve up to 99% accuracy with the Precision Planting distributor.

Caractéristiques / spécifications techniques

• Model name: VELOX
• Frame type: Telescopic (several models) or Foldable (selected models)
• Number of rows: configurations from 6 up to 12 rows (examples: 6, 7, 8, 9, 12)
• Row spacing: ranges depending on model (examples: 45-75cm, 50-80cm, 40-75cm, 60-65cm, 70-80cm)
• Row unit type: VELOX row unit
• Row spacing adjustment: Hydraulic with 5cm increments on many models; some manual continuous adjustments on special configurations
• Seed meter: Vacuum meter with electric motor drives (Precision Planting, ≥99% accuracy)
• Seed hoppers: 70L each, moisture-tight lids and locks
• Row unit downforce: Hydraulic cylinders on each row up to 350kg; optional springs up to 250kg with 6 settings
• Weight transfer system: Hydraulic with proportional weight transfer, up to 1000kg additional frame load
• Closing system: Two closing wheels with angle adjustment and 6 downforce settings (up to 53kg)
• Fertilizer system: High-capacity system; planter mounted hopper 1400L (air pressurised) and frontal AURA 2000L air pressurised hopper available
• Fertilizer metering & distribution: Modular volumetric meters with ISOBUS electric drives; air-flow distribution via hydraulic driven turbine
• Fertilizer openers: 16’’ single disc or 15’’ double disc openers
• Micro-products application: Up to 2 hoppers per row (20L each), ISOBUS electric drives, up to 3 application points
• Row cleaners: Floating design with easy height adjustment; 350mm stars with optional 255x45mm side wheels
• Turbodisc + Row Cleaners option: Includes 16’’ single disc coulter with 4 depth adjustments & row cleaners
• Hydraulic row markers: Optional
• Tractor power requirements: from ≥120 hp to ≥180 hp depending on model and configuration
• Tractor hydraulic requirements: Closed Centre hydraulic system recommended, max 40 l/min (70 l/min with fertilizer system)
• Hydraulic outlets: Standard 1 double-acting for frame folding; 1 double-acting for vacuum turbine; optional additional double-acting circuits for fertilizer turbine and row markers; 1 free return line standard
• Transport width: 3.0 m
• Transport wheels: 23 x 10.5 (foldable models show 2 support wheels)
• Machine base weight (without options): examples ~1960 kg (PF 300/8), 2080 kg (PF 300/9), 2490 kg (PV 300/12)
• ISOBUS compatibility: ISOBUS electric drives and control; monitor ISOBUS required for features like section control, variable rate and seed spacing changes (monitor not included)
