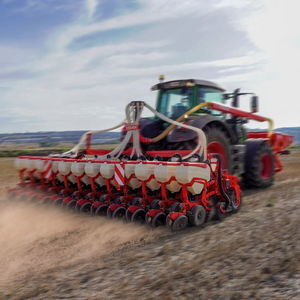

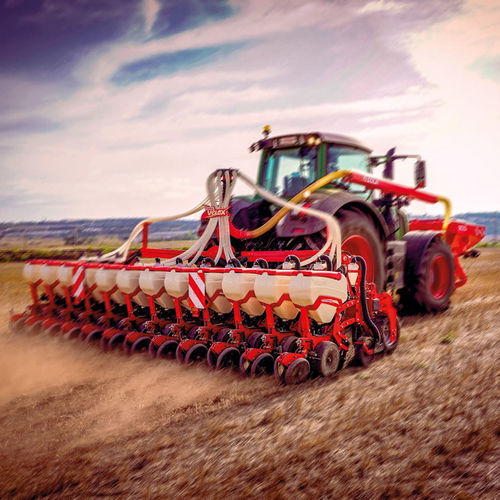

Pneumatic precision seed drill VELOX VMP 300/12

disc12-rowfolding

Overview
High-performance vacuum seed planter range designed for precise seed singulation, uniform spacing and consistent seed-to-soil contact. Suitable for a variety of row crops with models offering telescopic or foldable frames and multiple row configurations.

Key features

• Hydraulic downforce system delivering up to 350 kg per row.
• Heavy-duty parallel linkage with reinforced cast-iron arms for longevity and stability.
• Floating row cleaners with 350 mm stars; optional side wheels (255x45 mm) for improved residue management and stability.
• 15" double-disc openers with 9° between discs to reduce compaction and improve seed placement.
• Sealed bearings (reinforced triple seals) on ground wheels and opener discs for reduced maintenance.
• Intermediate press wheels ensuring consistent seed placement and reliable seed-to-soil contact.
• Microgranular product support: up to two 20 L hoppers per row with ISOBUS-compatible electric drives and universal auger metering.
• Large 70 L seed hoppers with moisture-tight lids and locks to reduce refills.
• Precision vacuum seed meters with self-adjusting singulator and ejector wheel for ≥99% accuracy (Precision Planting).
• Stepper motors providing consistent high-torque performance across working speeds for uniform distribution.

Seed meter and micro-products
Precision Planting vacuum seed meter achieves ≥99% accuracy. The meter is easy to adjust and maintain; the singulator is self-adjusting and includes an ejector wheel to clear seed disk holes and prevent skips. Up to two 20 L micro-product hoppers per row with ISOBUS electric motors provide precise application in-furrow or behind closing wheels with section/row control.

Downforce & weight transfer
Each row fitted with hydraulic cylinders delivering up to 350 kg downforce; optional springs with 6 settings provide up to 250 kg. Tractor-to-planter Adaptive Weight Transfer (hydraulic proportional) can add up to 1000 kg additional frame load for improved ground contact.

Fertiliser and distribution options
High-capacity fertilizer systems available: frontal AURA 2000 L air-pressurised hopper or planter-mounted 1400 L air-pressurised hoppers. Fertilizer metering uses modular volumetric meters with ISOBUS electric drives and air distribution driven by a hydraulic turbine. Fertilizer openers offered as 16" single disc or 15" double disc variants.

Design & options
Telescopic and foldable frame options depending on model. Row spacing adjustment hydraulic with 5 cm increments (some models manual/continuous). Available options: hydraulic row markers, turbodisc + row cleaners package, intermediate press wheels, various depth-control wheel sizes and closing wheel configurations. Typical transport width: 3.0 m.

Technical specifications

• Models/configurations: multiple telescopic and foldable models (examples: 300/6 45-75; 300/6 50-80; 300/7 45-60; 300/7 S 50-80; 300/8 40-75; 300/9 40-55; 300/8 70-80; 300/9 60-65; 300/12 45-50).
• Frame type: telescopic or foldable variants.
• Number of rows: 6 to 12 depending on model.
• Row spacing examples: 45–75 cm; 50–80 cm; 45–60 cm; 40–75 cm; 40–55 cm; 45–50 cm.
• Row unit: Velox row unit.
• Row spacing adjustment: hydraulic (5 cm increments) or manual/continuous on some models.
• Seed meter: vacuum meter with ISOBUS electric motor drives; Precision Planting vacuum meter ≥99% accuracy.
• Seed hoppers: 70 L each with moisture-tight lids and locks.
• Row unit downforce: hydraulic up to 350 kg per row; springs with 6 settings up to 250 kg.
• Weight transfer: hydraulic proportional system up to 1000 kg additional frame load.
• Closing system: two closing wheels with angle adjustment and 6 downforce settings up to 53 kg.
• Fertilizer system: frontal or planter-mounted air-pressurised hoppers (AURA 2000 L frontal; 1400 L planter-mounted).
• Fertilizer metering: modular volumetric meters with ISOBUS electric drives; air distribution via hydraulic turbine.
• Fertilizer openers: 16" single disc or 15" double disc.
• Micro-products: up to 2 × 20 L hoppers per row, ISOBUS electric drives, up to 3 application points.
• Row cleaners: floating design, 350 mm stars, optional 255x45 mm side wheels.
• Turbodisc + row cleaners: 16" single disc coulter with 4 depth adjustments and row cleaners.
• Hydraulic row markers: optional.
• Tractor power examples: ≥120 hp to ≥180 hp depending on model and row count.
• Hydraulic requirements: Closed Centre hydraulic system; max 40 l/min (70 l/min with fertilizer system).
• Recommended hydraulic outlets: 1 double acting – frame folding (standard); 1 double acting – vacuum turbine (standard); additional optional circuits for fertilizer, row markers and a free return line.
• Transport width: approx. 3.0 m.
• Example base weights: PF 300/8 = 1960 kg; PF 300/9 = 2080 kg; PV 300/12 = 2490 kg (refer to full technical table for model-specific data).
