Screen irrigation filter FY

meshstainless steelPVC

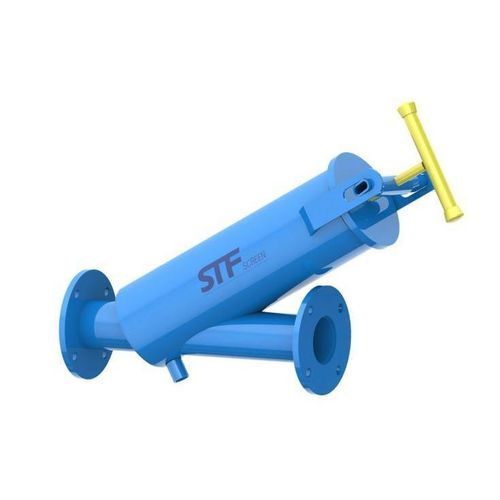

The FY manual Y-pattern screen filter from STF provides an efficient and cost-effective solution for agricultural and industrial applications, combining a large filtration area, low pressure loss, and the option for manual or automated cleaning. - Manual: Requires manual cleaning, ideal for simple and low-maintenance solutions. - In-line: Its horizontal in-line installation simplifies assembly and integration into existing systems. - Versatility: Wide range of sizes and filtration grades. The FY Y-pattern manual screen filter by STF Filters is engineered to deliver a robust, efficient, and economical solution for agricultural and industrial systems requiring reliable protection. It works by physically retaining particles with a stainless steel mesh screen, supported by either PVC or stainless steel depending on the model. The filter is cleaned manually, but can be automated if needed. It features a large filtration surface that enables high flow rates and minimizes pressure loss, resulting in better performance and improved downstream equipment protection. Designed for horizontal in-line installation, the FY filter is available in sizes from DN-50 (2”) to DN-300 (12”), handling flow rates up to 570 m³/h and working pressures from 2 to 10 bar, with a maximum fluid temperature of 50 °C. Constructed in carbon steel with epoxy-polyester coating, and optional AISI 304 components for coarser filtration, it ensures durability and corrosion resistance under demanding conditions. The FY is ideal for systems needing a dependable, low-maintenance filter solution. The FY filter from STF is designed for applications requiring effective and economical protection in irrigation, industrial, and water supply systems. Its Y-shaped body, made of carbon steel with a stainless steel mesh, traps solid particles, protecting downstream equipment and systems. Thanks to its large filtration surface and low pressure loss, it delivers high performance with simple maintenance, ideal for manual or semi-automated solutions. Available in various sizes and connections, the FY filter easily fits horizontal configurations, offering versatility and durability under demanding conditions. Technical Specifications / Features: - Manual Y-pattern screen filter for agricultural and industrial use - Large filtration area for high flow rates - Low pressure loss - Manual or automated cleaning options - Horizontal in-line installation - Available sizes: DN-50 (2”) to DN-300 (12”) - Maximum flow rate: up to 570 m³/h - Working pressure: 2 to 10 bar - Maximum fluid temperature: 50 °C - Construction: Carbon steel with epoxy-polyester coating - Optional AISI 304 components for coarser filtration - Stainless steel mesh screen, PVC or stainless steel support (depending on model) - Versatile and durable for demanding conditions
