Screen irrigation filter FY-LCM

metalstainless steelPVC

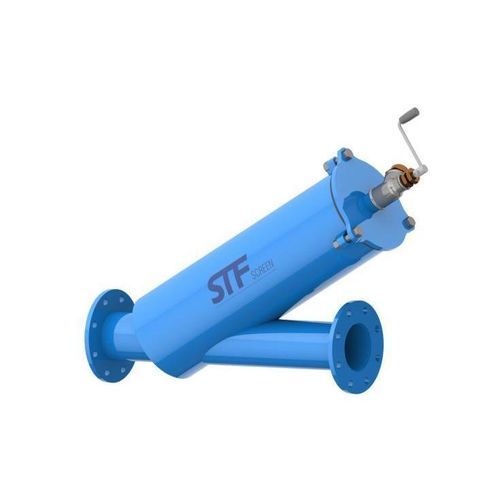

Y-pattern metal filter with manual brush for internal cleaning. Efficient, cost-effective, and ideal for protecting equipment in agricultural and industrial systems. - Manual: Built-in brush system allows internal cleaning without disassembly, optimizing maintenance times. - In-line: Easily installed directly into the pipeline without changes, fitting seamlessly into agricultural or industrial systems. Product Details: The FYLCM Y-pattern steel filter with manual brush is a robust and efficient solution for protecting equipment in agricultural and industrial applications. It filters particles through a stainless steel mesh (125 μm or 2 mm), supported by either PVC or stainless steel depending on the chosen filtration grade. Cleaning is performed manually using an integrated internal brush, allowing debris to be removed without disassembling the unit. This design reduces downtime and simplifies maintenance. The filter features an in-line configuration and various connection types (threaded, grooved), ensuring easy integration into existing pipeline systems. Its carbon steel body is treated with surface blasting and finished with an epoxy-polyester powder coating, offering excellent corrosion resistance. Available in DN-50 to DN-150 inlet/outlet sizes, it handles pressures up to 10 bar and fluid temperatures up to 50°C. With a large filtration surface and low head loss, the FYLCM delivers continuous performance and high flow capacity, making it ideal for demanding operational conditions with minimal service requirements. Solutions: Designed to protect agricultural and industrial systems, the FYLCM ensures precise and consistent filtration under high-flow conditions. Its manual brush cleaning system allows performance to be maintained without disassembling the unit, minimizing downtime. Made of carbon steel with epoxy coating, it withstands harsh environments and delivers long-lasting durability. Easy to install in-line and available in multiple sizes, it offers a practical, cost-effective solution for large particle retention. Technical Specifications: - Y-pattern steel filter with manual brush - Stainless steel mesh filtration (125 μm or 2 mm) - Support: PVC or stainless steel (depending on filtration grade) - Manual internal brush cleaning (no disassembly required) - In-line configuration - Connection types: threaded, grooved - Body: carbon steel, surface blasting + epoxy-polyester powder coating - Corrosion resistant - Inlet/outlet sizes: DN-50 to DN-150 - Max pressure: 10 bar - Max fluid temperature: 50°C - Large filtration surface, low head loss - High flow capacity - Minimal service requirements
