Grapes transfer pump G6-220

grapes transfer pump
grapes transfer pump
grapes transfer pump
grapes transfer pump
grapes transfer pump
grapes transfer pump
grapes transfer pump
Add to favorites
Compare this product


for grapes transfer
Other characteristics
impeller, electric

4 kW, 5.5 kW, 7.5 kW (5.4 hp)

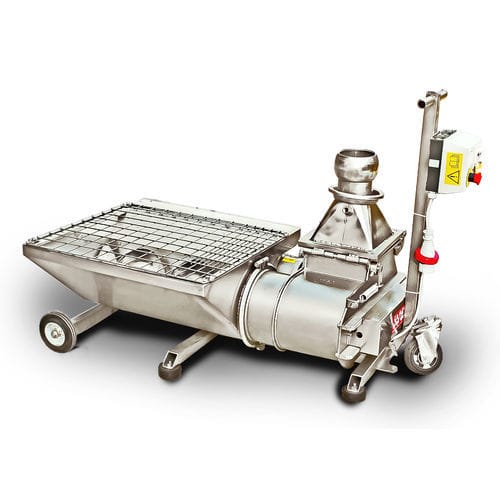

G6-220 PUMP FOR GRAPES (patented) it is ideal for whole and destemmed grapes, , with very wide passages (300x200), low rpm (45-57). It guarantees maximum respect of the grapes. It acts by pressure and not by centrifugal force, it ensures the best possible treatment of the pumped product avoiding breaking of the stalks and crushing of the skins and grape pips. It can also be used for fermented marc. Reclinable stainless steel hopper to obtain smaller height dimensions, it is complete with stainless steel auger protection grid. Stainless steel openable cone with hinges, for inspection of the entire internal pump, stainless steel ball or garolla joint Ø 100 -120. Stainless steel wagon in two different solutions: longitudinal or transversal, wheels for handling and stainless steel frame with ground support device on four anti-vibration pads. Geared motor upon choice in the powers Kw 4 - 5.5 - 10 for a maximum head of 8/10 m in height or 40/50 of distance. Pump body of different sizes with auger inlet D. 220 - 300 - 400. Upon request: Hoppers of various sizes - Speed variator - Electronic inverter - Swan neck - Compression tank - Stainless steel pipes.
