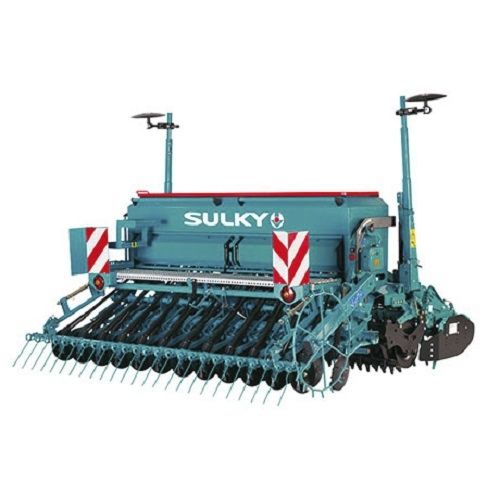

Mechanical seed drill Tramline CE/CX
disctractor-mountedwith harrow

mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
mechanical seed drill
Add to favorites
Compare this product


Characteristics

Seed distribution
mechanical
Type
disc
Other characteristics
tractor-mounted, with harrow
Working width

3 m, 4 m
(9'10" , 13'01" )

Inter-row spacing

12.5 cm, 14.3 cm, 15 cm
(4.9 in, 5.6 in, 5.9 in)

Weight

650 kg, 700 kg, 900 kg
(1,433 lb, 1,543.2 lb, 1,984.2 lb)

Seed hopper volume

550 l, 800 l, 1,000 l, 1,100 l, 1,350 l
(145.3 gal, 211.3 gal, 264.2 gal, 290.6 gal, 356.6 gal)

Description

Careful integration into the tillage tool The highly integrated TRAMLINE CE/CX hopper enables you to take advantage of a range of seed drills with minimum overhang, providing better use of the lifting power, which results in a particularly high hopper capacity. In addition, the distribution is driven by a large diameter sun landwheel, which removes all wheel marks from the drilling operations. An integrated seed drill for a tried and tested concept 1.Refinement 2.Firming 3.Planting 4.Overlap Accuracy from the SULKY peg-wheel metering Thanks to SULKY expertise and the use of hard-wearing materials, this distribution gives you many advantages: • –Precise application rate from 1.5 to 400 kg/ha • –Multi-purpose, from rapeseed to field beans • –Quick and easy calibration test, with the seed drill on the ground • –Complete hopper emptying due to the separating baffles at the hopper base. UNISOC or UNIDISC: a drilling system that stands the test of time Thanks to the springs positioned high up on the drilling bars, the powerful double-effect mechanism provides numerous advantages: • – Application pressure onto the drilling elements of up to 30 kg with the UNIDISC or up to 20 kg in UNISOC (springs compressed) • – Pressure relief of the drilling elements for light drilling (springs released) • – Extreme vertical clearance to pass over plant debris. • – Possibility of fitting SULKY press wheels on the tool bar
