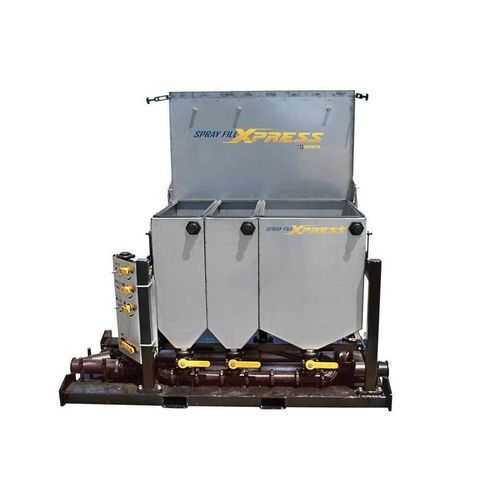

Dosing unit for filling applications SFX810

for crop sprayers

Overview
The Spray Fill Xpress reduces sprayer fill time by up to 82% using a chemical batching system that holds chemicals in separate containment areas until they are drawn into the sprayer. Typical filling tasks that previously took ~30 minutes can be cut to under 7 minutes. 2017 AE50 product award winner.

Models

• SFX830 – 80 GAL capacity (compact footprint)
• SFX1630 – 160 GAL capacity (configurable with 2–4 tanks)
• SFX2430 – 240 GAL capacity (configurable with 3–6 tanks; 40- and 80-gal tank options)
• Drone SFX810 – drone unit: single 80 GAL or two 40 GAL tanks with in-tank agitation

Key Features & Benefits

• Chemical batching: stainless steel tanks partitioned into individual containment areas prevent premixing and unwanted reactions.
• Substantial time savings: increases spraying productivity up to 82% by dramatically reducing fill time.
• Modular design: SFX2430 customizable with 3–6 tanks (40- and 80-gal); SFX1630 configurable with 2–4 tanks.
• Stainless steel tanks with jug rinse system: support multiple chemicals and include jug rinse for convenient container cleanout.
• Deep sump tank: angled bottom reduces splashing, accelerates transfer to the sprayer and enables complete drainage.
• 3-inch plumbing (bulk units): extra-large plumbing to greatly reduce fill times; fully flushable to prevent carry-over.
• 1-inch plumbing (drone units): supports up to ~32 GPM for drone fills and is fully flushable.

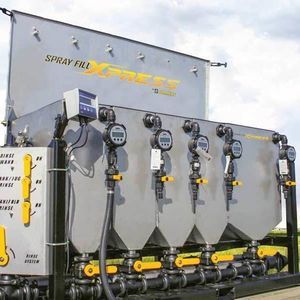

• Optional flow meters and scales: enable precise batching through accurate volume and weight measurement.
• Rinse system and rinse wand: main valve directs water to rinse wand, tank/jug rinse or manifold rinse; rinse wand assists tank cleaning and slurry creation for dry chemical induction.
• Forklift access holes: allow quick loading to trailers; compact models fit crossways on standard trailers.
• Optional pump/engine package: electric start 13 HP motor with centrifugal pump capable of moving water at 440 GPM (from holding tank to sprayer).

Applications

• Batching and preparing multiple chemicals for sprayer fills without premixing.
• Rapidly filling large sprayers on-farm or for custom applicators.
• Drone-specific filling: compact drone units pre-batch and agitate loads for efficient drone spraying operations.

Additional Notes

• SFX830: compact 40" x 40" footprint offering the 80-gallon option in a small package.
• SFX1630: trailer-friendly design that can fit crossways on a trailer; available in multiple tank configurations.
• Drone SFX810: includes in-tank agitation for pre-batched loads and incorporates standard Spray Fill Xpress features adapted for drone operations.

Technical specifications

• SFX2430: Depth: 36"
  Length (without pump): 102"
  Length (with pump): 130"
  Height (lid closed): 46"
  Height (lid open): 78"
  Total capacity: up to 240 GAL (3–6 tanks in 40- and 80-gal sizes)
• SFX1630: Depth: 36"
  Length (without pump): 78"
  Length (with pump): 106"
  Height (lid closed): 46"
  Height (lid open): 78"
  Total capacity: up to 160 GAL (2–4 tanks)
• SFX830 / SFX80: Depth: 40"
  Width: 40"
  Height (lid closed): 46"
  Height (lid open): 78"
  Capacity: 80 GAL (compact footprint)
• SFX1-80 (drone single 80): Depth: 40"
  Width: 40"
  Height (lid closed): 46"
  Height (lid open): 78"
  Capacity: one 80 GAL tank with agitation
• SFX2-40 (drone two 40s): Depth: 40"
  Width: 40"
  Height (lid closed): 46"
  Height (lid open): 78"
  Capacity: two 40 GAL tanks with agitation
• Plumbing: 3-inch plumbing for large units (greatly reduces fill times; fully flushable).
  Drone plumbing: 1-inch plumbing allows ~32 GPM flow for drone fills.
• Pump/Engine (optional): Electric start, 13 HP motor, centrifugal pump moving water at 440 GPM.
