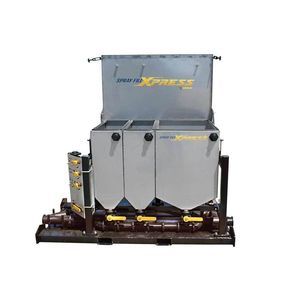

Dosing unit for filling applications SFX830

for crop sprayers

Product overview
The Spray Fill Xpress family reduces fill time for sprayers by up to 82% through chemical batching and high-capacity plumbing. Typical manual fill cycles that required ~30 minutes can be reduced to under 7 minutes, increasing application uptime. 2017 AE50 Product Award Winner.

Models

• SFX830 – 80 GAL (≈303 L) single-tank compact unit
• SFX1630 – 160 GAL (≈606 L) configurable as 2, 3 or 4 tanks
• SFX2430 – 240 GAL (≈910 L) high-capacity unit configurable with 3–6 tanks (40- and 80-GAL options)
• Drone SFX810 – drone-oriented configuration with either one 80 GAL (≈303 L) or two 40 GAL (≈151 L) stainless-steel tanks with built-in agitation

Key features & benefits

• Time savings: chemical batching plus large-diameter plumbing reduces fill cycles and increases field productivity up to 82%.
• Chemical batching: stainless-steel tanks are partitioned into containment areas to prevent premixing and cross-reactions until dispensing.
• Modular configurations: SFX2430 configurable with 3–6 tanks (total 240 GAL); SFX1630 configurable with 2–4 tanks (total 160 GAL); SFX830 compact 80 GAL in a 40 in × 40 in footprint.
• Drone-ready design: Drone SFX810 supports single 80 GAL or two 40 GAL tanks, includes in-tank agitation and compact footprint for drone operations.
• Plumbing options: extra-large 3-inch plumbing for rapid fills and full flushing; 1-inch plumbing variant for drone fills supports up to 32 GPM (≈121 L/min).

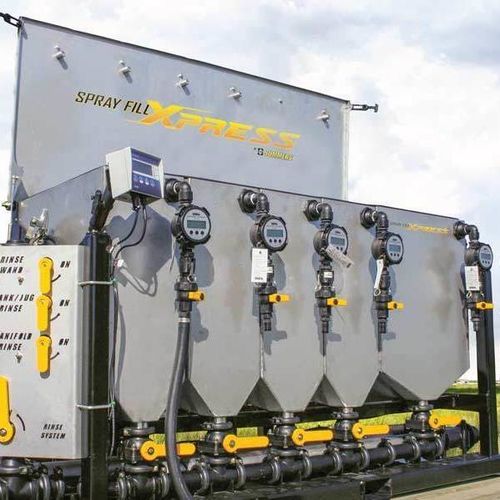

• Measurement and control: optional flow meters and scales provide precise dosing for each containment area.
• Stainless-steel tanks: corrosion-resistant tanks with jug rinse system on every tank for convenient cleanout.
• Deep sump design: angled bottom reduces splashing, speeds transfer into the sprayer and allows complete drainage.
• Integrated rinse system: rinse wand and valves direct rinse to wand, tank/jug or manifold to reduce carry-over.
• Transport features: forklift access holes for movement between ground, trailer and work area.

Options

• Flow meters for precise chemical measurement.
• Optional scales for accurate weighing of chemical loads per containment area.
• Optional pump/engine package: electric start, 13 HP engine and centrifugal pump rated at 440 GPM (≈1,666 L/min) for high-volume transfer to the sprayer.

Technical specifications

• Performance: increases spraying productivity by up to 82% via chemical batching and improved plumbing.
• Model capacities: SFX830 = 80 GAL (≈303 L); SFX1630 = 160 GAL (≈606 L) configurable 2–4 tanks; SFX2430 = 240 GAL (≈910 L) configurable 3–6 tanks; Drone SFX810 = 1×80 GAL or 2×40 GAL with agitation.
• SFX2430 dimensions: Depth 36 in (914 mm), Length without pump 102 in (2,591 mm), Length with pump 130 in (3,302 mm), Height (lid closed) 46 in (1,168 mm), Height (lid open) 78 in (1,981 mm).
• SFX1630 dimensions: Depth 36 in (914 mm), Length without pump 78 in (1,981 mm), Length with pump 106 in (2,692 mm), Height (lid closed) 46 in (1,168 mm), Height (lid open) 78 in (1,981 mm).
• SFX830 / SFX1-80 / SFX2-40 dimensions: Depth 40 in (1,016 mm where applicable), Width 40 in (1,016 mm footprint for 80 GAL), Height (lid closed) 46 in (1,168 mm), Height (lid open) 78 in (1,981 mm).
• Plumbing: 3-inch plumbing for rapid, fully flushable fills; 1-inch plumbing for drone fills supporting up to 32 GPM (≈121 L/min).
• Tank material: stainless steel with jug rinse system.
• Optional pump/engine: electric start, 13 HP, centrifugal pump rated 440 GPM (≈1,666 L/min).
• Other: deep sump design, integrated rinse wand and valves, forklift access holes, optional flow meters and scales.
