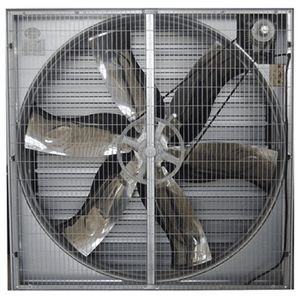

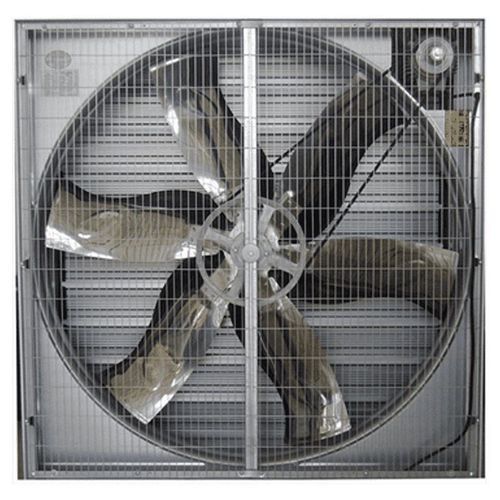

Farm building fan SL360 extractiongalvanised steelturbine
Add to favorites
Compare this product
Characteristics
- Application
- farm building
- Function
- extraction
- Other characteristic
- galvanised steel, turbine
- Air volume
20,000 m³/h, 20,800 m³/h
(706,293.3 ft³/h, 734,545.1 ft³/h)
Description
Product description
Extraction turbine SL360 with a nominal flow of 20,800 m3/h. Stainless-steel blades, galvanized structure, centrifugal-opening blind flap, 0.5 HP Siemens motor and rear guard grille. Designed for industrial ventilation and extraction applications.
Dimensions
Strengths
Technical specifications
Extraction turbine SL360 with a nominal flow of 20,800 m3/h. Stainless-steel blades, galvanized structure, centrifugal-opening blind flap, 0.5 HP Siemens motor and rear guard grille. Designed for industrial ventilation and extraction applications.
Dimensions
- Length: 1,090 mm
- Width: 1,090 mm
- Depth: 450 mm
Strengths
- Robustness: stainless-steel blades and heavy-gauge galvanized frame
- Construction: sheet thickness superior to competitors and high galvanizing weight
- Reliability: Siemens motor
- Safety: CE 1051-10/12 certification
- Protection: rear guard grille
Technical specifications
- Flow rate: 20,000 / 20,800 m3/h (commercial value: 20,800 m3/h)
- Structure: galvanized
- Blades: stainless steel
- Motor power: 0.5 HP
- Blind flap: centrifugal opening
- Rear grille: present
- Dimensions: 1,090 × 1,090 × 450 mm (L×W×D)
- Certification: CE 1051-10/12
- Motor brand: Siemens
- Construction note: sheet thickness superior to competition and high galvanizing weight
- Commercial reference: SL360
Catalogs
No catalogs are available for this product.
