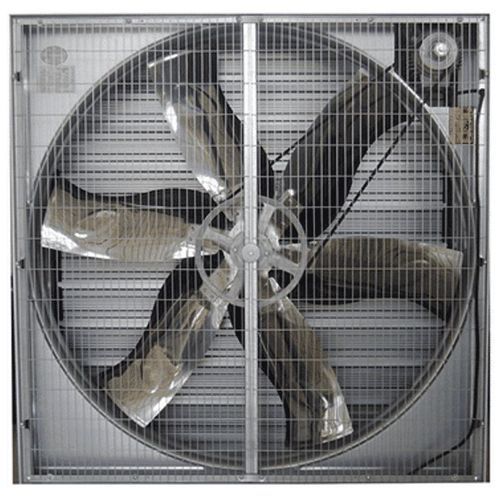

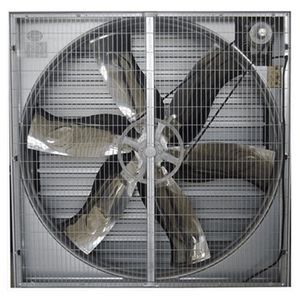

Farm building fan SL500for air circulationgalvanised steelturbine
Add to favorites
Compare this product
Characteristics
- Application
- farm building
- Function
- for air circulation
- Other characteristic
- galvanised steel, turbine
- Air volume
40,700 m³/h, 43,000 m³/h
(1,437,306.9 ft³/h, 1,518,530.7 ft³/h)
Description
Description
Industrial ventilation turbine designed for high-volume air movement in production and processing facilities. Nominal flow 40,700 m³/h with stainless-steel blades and a galvanized structure with 275 g/m² coating. Jalousie flap with centrifugal opening and rear safety grille included.
Dimensions
Strengths
Technical specifications
Industrial ventilation turbine designed for high-volume air movement in production and processing facilities. Nominal flow 40,700 m³/h with stainless-steel blades and a galvanized structure with 275 g/m² coating. Jalousie flap with centrifugal opening and rear safety grille included.
Dimensions
- Length: 1,380 millimetres
- Width: 1,380 millimetres
- Depth: 450 mm
Strengths
- Reliability: SIEMENS adjustable three-phase motor, 1.5 HP, IP55
- Durability: stainless-steel propeller; galvanized frame with above-standard sheet thickness and 275 g/m² galvanizing weight
- Safety: CE 1051-10/12 certification; protective rear grille
Technical specifications
- Flow (stated): 40,700 m³/h
- Flow (technical data): 43,000 m³/h
- Structure: galvanized
- Blades: stainless steel
- Galvanizing weight / sheet: 275 g/m²
- Jalousie flap: centrifugal opening
- Rear grille: included
- Motor: SIEMENS adjustable three-phase motor, 1.5 HP, IP55
- Dimensions: Length 1,380 mm; Width 1,380 mm; Depth 450 mm
- Certification: CE 1051-10/12
