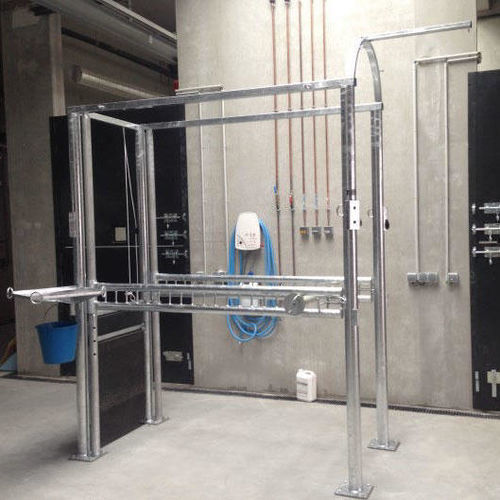

Horse squeeze chute 4300010

veterinary

Presentation
Equine examination stall with height-adjustable, pivoting side panels to facilitate veterinary access. Designed for gynecological, ultrasonography and radiographic examinations; provides safety and comfort for horses and clinicians.

Detailed description
The assembly is supported by 4 posts: flange-mounted baseplates with 4 anchor bolts per post.

• Height: 2,500 mm
• Length: 2,200 mm
• Internal width: 850 mm
• Material: hot-dip galvanised steel

The examination stall includes:

• 1 ultrasound tray (right- or left-mounted)
• 1 upper link with 8 panels and a head support
• 2 steel side panels, height-adjustable and pivoting
• 1 double rear gate
• 1 tail clamp
• Locations for power and data outlets
• Head support

Product strengths
Interior rubber protection on gates
Optional: integration of a foal trap available

Characteristics / technical specifications

• Use: consultation for equine clinic or veterinary practice (gynecology, ultrasound, radiography)
• Height: 2,500 mm
• Length: 2,200 mm
• Internal width: 850 mm
• Material: hot-dip galvanised steel
• Structure: supported by 4 posts with flange mounting (4 anchor bolts per post)
• Side panels: 2 steel panels, height-adjustable and pivoting
• Included equipment: ultrasound tray (right or left), upper link with 8 panels + head support, double rear gate, tail clamp, locations for power and data outlets
• Protection: rubber interior on gates
• Option: possible integration of a foal trap
• Internal reference (SKU): 4300010
