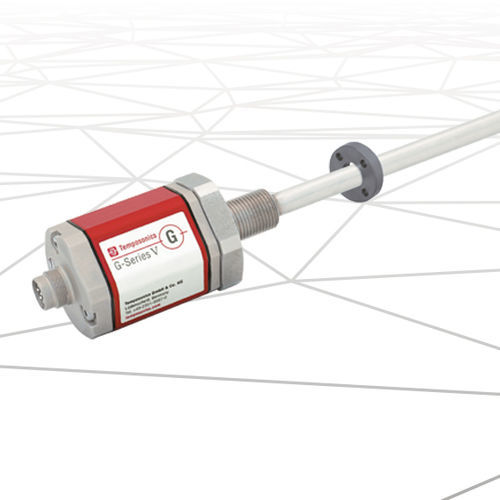

Linear position sensor GH5 series

The Temposonics® G-Series V GH5 is a robust rod sensor designed for industrial position sensing applications. It features increased operating temperature capability up to +80 °C (+176 °F) and enhanced shock and vibration resistance, making it suitable for demanding environments. The sensor offers both analog and digital outputs (PWM, Start/Stop), providing flexibility for integration into various control systems. Effortless programmability is enabled via the TempoLink® Smart Assistant.

Main Features

• Increased operating temperature up to +80 °C (+176 °F)
• Enhanced shock and vibration resistance
• Output options: Analog, Digital (PWM, Start/Stop)
• Effortless programmability via TempoLink® Smart Assistant

Specifications

• Output: Digital, Analog
• Stroke Length: 25…7620 mm (1…300 in.)
• Resolution (Digital): 0.005 mm to 0.1 mm
• Resolution (Analog): Infinite
• Multi-Position (Digital): Up to 9 positions
• Status: Active - Product is actively promoted and supported

Certifications

• CE
• UL/CUL
• UKCA
