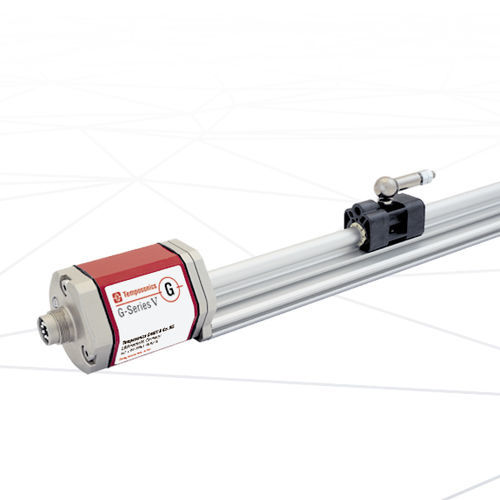

Linear position sensor GP5 series

The Temposonics® G-Series V GP5 is a profile position sensor designed for industrial applications requiring high precision and durability. This sensor offers increased operating temperature capability up to +80 °C (+176 °F), enhanced shock and vibration resistance, and extended stroke length. It supports both analog and digital outputs (PWM, Start/Stop) and features effortless programmability via the TempoLink® Smart Assistant.

Main Features

• Increased operating temperature up to +80 °C (+176 °F)
• Enhanced shock and vibration resistance
• Extended stroke length
• Output options: Analog, Digital (PWM, Start/Stop)
• Effortless programmability via the TempoLink® Smart Assistant

Technical Specifications

• Output: Digital, Analog
• Stroke Length: 25…6350 mm (1…250 in.)
• Resolution (Digital): 0.005 mm to 0.1 mm
• Resolution (Analog): 16 bit
• Multi-Position (Digital): Up to 9 positions
• Status: Active - Product is actively promoted and supported
