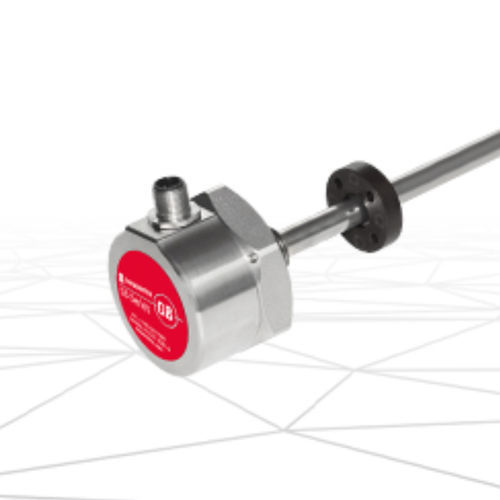

Linear position sensor GB series

non-contact

The Temposonics® GB-Series Position Sensors with threaded flange are designed for limited spaces in in-cylinder applications, offering high performance and flexibility. The sensor element and electronics can be easily replaced without interrupting the hydraulic circuit, ensuring minimal downtime and maintenance. The electrical connection is 360° rotatable after mounting, providing installation flexibility. The sensor operates at temperatures up to +100 °C (+212 °F) and supports both Analog and SSI outputs.

Key Features

• Sensor element & electronics can be easily replaced without interrupting the hydraulic circuit
• 360° rotatable electrical connection after mounting
• Operating temperature up to +100 °C (+212 °F)
• Outputs: Analog, SSI

Specifications

• Output: Analog
  • Stroke Length: 25…3250 mm (1…128 in.)
  • Resolution: 16 bit
  • Status: Active
• Output: SSI
  • Stroke Length: 25…3250 mm (1…128 in.)
  • Resolution: 5 µm
  • Status: Active

Certifications

• CE
• UL/cUL
• EAC
• UKCA

Characteristics / Technical Specifications

• Product type: Position sensor for limited spaces in in-cylinder applications
• Replaceable sensor element and electronics
• 360° rotatable electrical connection
• Operating temperature: up to +100 °C (+212 °F)
• Output types: Analog, SSI
• Stroke length: 25…3250 mm (1…128 in.)
• Resolution: Analog - 16 bit, SSI - 5 µm
• Status: Active
• Certifications: CE, UL/cUL, EAC, UKCA
