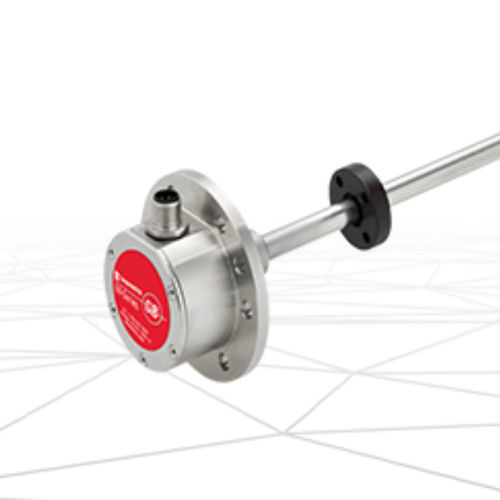

Linear position sensor GB-N

non-contact

The GB-Series with pressure-fit flange is a position sensor designed for harsh environments, offering robust performance and high reliability. It is available in stainless steel 1.4404 (AISI 316L) and features a flat and compact housing with a side-mounted signal connection. The sensor rod is highly resistant to pressure, supporting up to 800 bar, and the device operates at temperatures up to +100 °C (+212 °F). Output options include Analog and SSI, making it versatile for various industrial applications.

Main Features

• Available in stainless steel 1.4404 (AISI 316L)
• Flat & compact housing with side-mounted signal connection
• High pressure resistant sensor rod for up to 800 bar available
• Operating temperature up to +100 °C (+212 °F)
• Outputs: Analog, SSI

Specifications

• Output: Analog, SSI
• Stroke Length: 25…3250 mm (1…128 in.)
• Resolution: Analog: 16 bit, SSI: 5 µm
• Status: Active - Product is actively promoted and supported

Certifications & Approvals

• CE
• UL/cUL
• EAC
• UKCA

Characteristics / Technical Specifications

• Material: Stainless steel 1.4404 (AISI 316L)
• Housing: Flat and compact with side-mounted signal connection
• Pressure resistance: Sensor rod up to 800 bar
• Operating temperature: Up to +100 °C (+212 °F)
• Output types: Analog, SSI
• Stroke length: 25 to 3250 mm (1 to 128 in.)
• Resolution: Analog 16 bit, SSI 5 µm
• Status: Active
• Certifications: CE, UL/cUL, EAC, UKCA
