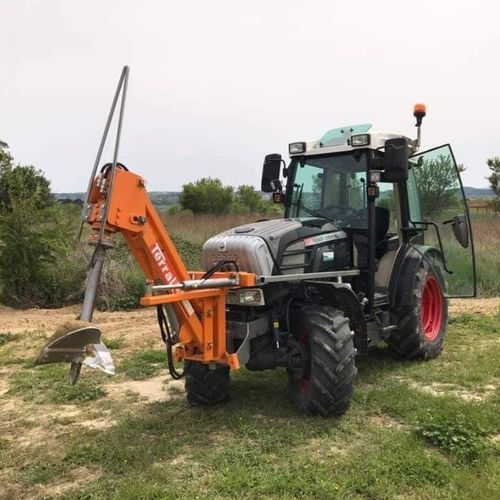

Hydraulic earth auger tractor-mounted
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Other characteristics
- tractor-mounted
- Diameter
Max.: 400 mm
(15.7 in)Min.: 150 mm
(5.9 in)
Description
Description
The TERRAL hydraulic auger is designed to drill pilot holes for vines, trees or fencing in confined and varied soil conditions. Its compact frame and generous clearance allow operation between plantation rows and make it suitable for year-round agricultural use.
Function
The TERRAL hydraulic auger drills holes in the ground with controlled rotation and vertical feed, enabling precise pilot-hole creation between plants.
Use
Used for planting vines or trees, installing fence posts or other field operations. Compatible with viticulture, arboriculture, livestock and similar agricultural applications.
How it works
Slow rotation combined with machine descent allows the auger to excavate soil and extract dead roots. Two working positions facilitate access beneath plantations and improve maneuverability.
Hitch
The auger is front-mounted on the tractor to ensure full visibility of the operation and enhanced operator comfort. It can be paired with a front crate to collect uprooted stocks or posts.
Feed rate
Variable depending on the required number of holes and soil type encountered; adjust tractor advance accordingly.
Technical specifications
Options
Characteristics / technical specifications
The TERRAL hydraulic auger is designed to drill pilot holes for vines, trees or fencing in confined and varied soil conditions. Its compact frame and generous clearance allow operation between plantation rows and make it suitable for year-round agricultural use.
Function
The TERRAL hydraulic auger drills holes in the ground with controlled rotation and vertical feed, enabling precise pilot-hole creation between plants.
Use
Used for planting vines or trees, installing fence posts or other field operations. Compatible with viticulture, arboriculture, livestock and similar agricultural applications.
How it works
Slow rotation combined with machine descent allows the auger to excavate soil and extract dead roots. Two working positions facilitate access beneath plantations and improve maneuverability.
Hitch
The auger is front-mounted on the tractor to ensure full visibility of the operation and enhanced operator comfort. It can be paired with a front crate to collect uprooted stocks or posts.
Feed rate
Variable depending on the required number of holes and soil type encountered; adjust tractor advance accordingly.
Technical specifications
- Compact profiled-steel frame
- High-displacement hydraulic motor suitable for Ø150–Ø400 mm augers
- Pivot-mounted motor for multiple working positions
- Reversible rotation motor
- Parallelogram hydraulic chassis lift
- Hydraulically offsettable frame: ±90 cm lateral travel
- Storage struts
Options
- Wire protector
- Ø400 mm shovel-style spiral
- Ø150 mm helical auger
- Ø250 mm helical auger
- Helical screw anchor (specify brand)
- Drill extension
- Manual distributor (for tractors without cab)
- Electrohydraulic joystick control
Characteristics / technical specifications
- Frame: compact profiled steel
- Compatible auger diameters: Ø150 mm, Ø250 mm, Ø400 mm (including shovel Ø400 mm)
- Hydraulic motor: high-displacement, pivoting, reversible rotation
- Lifting: parallelogram hydraulic lift
- Offset: hydraulically adjustable ±90 cm lateral travel
- Storage equipment: support struts
- Optional accessories and controls as listed above
