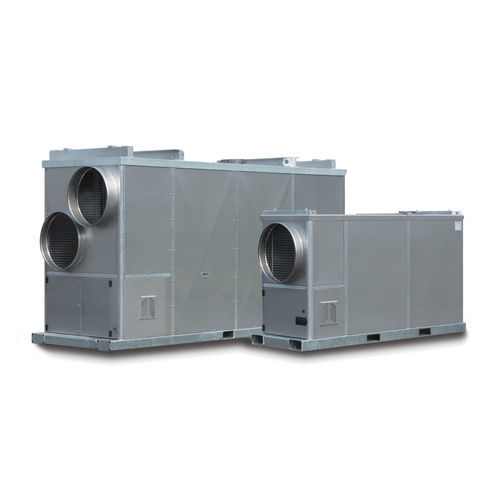

Oil-fired air heater IMAC series

wall-mountedfarm building

-High effiëciency heat exchanger (92%). -Weather resistant and lockable casing. -High Pressure fan for powerful heat distribution. -Recirculation hose fl ange possible. -100% Clean and dry heat. -Outlet temperature (delta T) of some 47°C. -Large heat throw. -Combustion chamber heat resistant up to 850°C. -Lower tray for oil containment during servicing. Benefits -High capacity. -Easily and safely transportable. -Central control. -IMAC 2000 S 2T AND 2200 S 2T -The IMAC 2000 S 2T and 2200 S 2T are an optional version of the IMAC 2000 S. The IMAC 2200 S 2T has a capacity of 220 kW, a 2 stage burner, two fan speeds, soft start using the built-in frequency controller and a dual thermostat connection. The same applies to the IMAC 2000 S 2T with a capacity of 200 kW. By using two thermostats that are set with a slight difference the heater always automatically operates the burner with the most favourable burner stage. Normally it will burn to the lowest level controlled by the highest set thermostat. If the capacity is not sufficient enough the temperature drops to the lowest setting of the other thermostat and the heater will turn on to high stage. The advantage is that the heater is quieter and more efficient.
