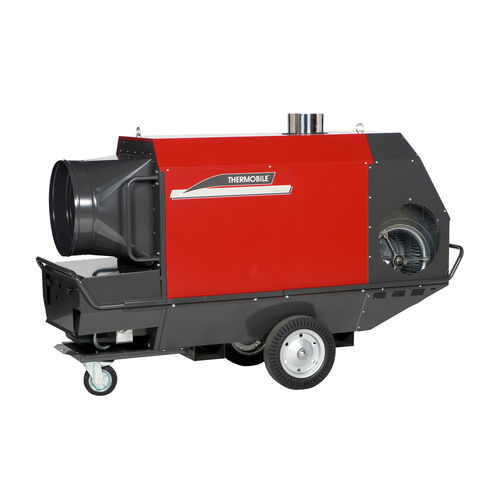

Oil-fired air heater IMA series

mobilefor greenhouse

Working principles High efficiency heat exchanger (92%). Combustion chamber heat resistant up to 850°C. HP Radial fan for powerful heat distribution. 100% Clean and dry heat. Outlet temperature (delta T) circa 40-60°C. Large heat throw. Lower tray for oil containment during servicing. Protection bars all around. Big wheels. Benefits High capacity. Easily transportable. Compact. features IMA 61/111 can pass through a door width of 80 cm. Durable phosphated body panels with powder coating. With overheating protection and temperature limitation of warm air. The fan stops at temperatures below 40 degrees Celsius and does not ventilate cold air when starting up. (Constant ventilation is possible with an extra switch position). Fully automatic, controllable with thermostat connection. Tigerloop standard. Models IMA 111/150/200 are equipped with fork truck slots. Can be used in combination with Multitanks. Fuel fi lter with condensate separator. Burner with rain cover and lower tray for oil containment during servicing. Room ventilation is required, fresh air connection available. Available in 3 fan types: Axial: normal fan. Radial / RDD (230 V): for more pressure (300 Pa) and air flow. EC: 230 V and energy efficient 2-stage adjustable high pressure ventilator. This is more compact than the Radial version. Radiaal HP (400 V): HP for extra high pressure (500 Pa) and air flow. Radial fans are essential for heat distribution with hoses.
