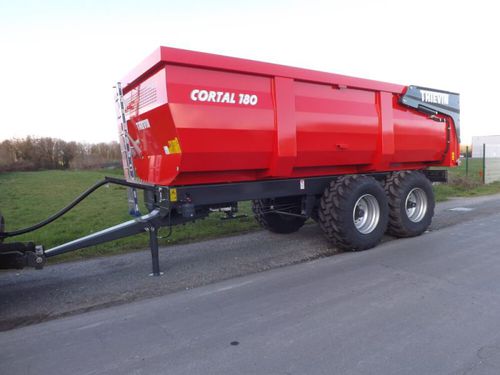

Dump trailer CORTAL 180

tippingmountedtandem axle

The CORTAL 180 monocoque agricultural trailer has a GVW of 24 T. This model is available in 4 lengths (6.20 m / 6.70 m / 7.20 m / 7.50 m) and is equipped with a 110 mm square Boggie axle. The versatile CORTAL agricultural trailer The 24 T GVW of the CORTAL 180 agricultural trailer will allow you to transport important volumes while keeping the versatility for your different works. Technical characteristics Inside length of the body : 6 200 mm / 6 700 mm / 7 200 mm / 7 500 mm Maximum interior body width: 2 320 mm Height inside the box : 1 500 mm Volume with wheat racks: 21,2 m³ / 22,9 m³ / 24,6 m³ / 25,6 m³ Side plate: Steel S355 thickness 4 mm Bottom plate: Steel S235 thickness 5 mm Frame profiles for LG 6 200 and 6 700 mm: 300 x 100 x 8 mm Frame profiles for LG 7 200 and 7 500 mm: 300 x 100 x 10 mm Axle : Bogie 23T square of 110 mm Hydraulic braking: Drum 400 x 80 Original tires: 18R22.5 Compressor only on LG 7500 mm: Cardan compressor 85 L/min at 1000 rpm with hydraulic lowering Load transfer only on LG 7 500 mm : 2 load transfer cylinders for tractor supply Boom : Boom with adjustable mechanical suspensions, 13 leaf spring Ring : Fixed ring Translated with www.DeepL.com/Translator (free version)
