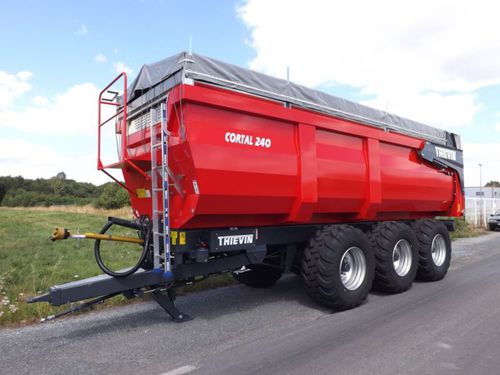

Dump trailer CORTAL 240

tippingmounted3-axle

The CORTAL 240 is the largest model in the CORTAL range of agricultural trailers, with a total weight of 32 tons. This model is available in four lengths (7,50 m / 8,00 m / 8,50 m / 9,00 m). The large volume agricultural trailer Its tridem with connecting rods and a single rear follower as standard will guarantee you a very good driving comfort and stability. Its large volume will allow you to transport large quantities of material. Technical characteristics Inside box length : 7 500 mm / 8 000 mm / 8 500 mm / 9 000 mm Max. interior body width: 2,320 mm Height inside the box: 1 500 mm Volume with wheat racks: 25,6 m³ / 27,3 m³ / 29 m³ / 30,8 m³ Side plates : Steel S355 thickness 4 mm Bottom plate: Steel S235 thickness 5 mm Frame profiles: 300 x 100 x 10 mm Axle : Tridem with 32T square rods of 110 mm with single rear follower Hydraulic braking: Drum 400 x 80 Original tires: 18R22.5 Compressor: 85 L/min cardan compressor at 1000 rpm with hydraulic lowering Boom : Boom with adjustable mechanical suspensions, 13 leaf spring Ring: Fixed ring
