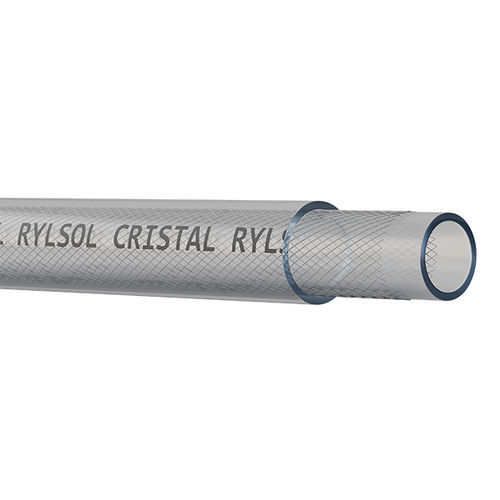

Hose Braided Crystal rylsol

air distributionsupplyPVC

Short description
Hose for transfer of water, air and raw materials in the food industry and general industry. Non-toxic (suitable for food contact).
Temperature range: -20°C to +80°C.

Available items
Item | Code | Ø (mm) | WP (bar)
C201006 | 5080 | 6 x 12 | 15
C201008 | 5081 | 8 x 14 | 15
C201010 | 5082 | 10 x 16 | 15
C201012 | 5083 | 12 x 18 | 15
C201015 | 5084 | 15 x 21 | 10
C201019 | 5085 | 19 x 26 | 10
C201020 | 5085/1 | 20 x 26 | 8
C201025 | 5079 | 25 x 32 | 8
C201030 | 5087 | 30 x 38 | 8
C201035 | 5089 | 35 x 44 | 8
C201040 | 5090 | 40 x 50 | 8

Characteristics / Technical specifications

• Material: smooth transparent PVC.
• Reinforcement: continuous polyester textile (braided).
• Applications: transfer of water, air and raw materials in the food and general industry.
• Food contact: non-toxic, suitable for food applications.
• Temperature range: -20°C to +80°C.
• Available sizes and working pressures (Ø / WP): 6 x 12 mm - 15 bar; 8 x 14 mm - 15 bar; 10 x 16 mm - 15 bar; 12 x 18 mm - 15 bar; 15 x 21 mm - 10 bar; 19 x 26 mm - 10 bar; 20 x 26 mm - 8 bar; 25 x 32 mm - 8 bar; 30 x 38 mm - 8 bar; 35 x 44 mm - 8 bar; 40 x 50 mm - 8 bar.
