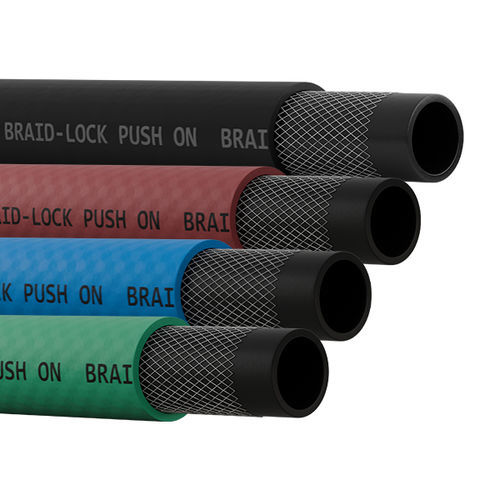

Hose Braid-lock push on

supplyair distributionrubber

Overview
Multi-purpose oil-, air- and water-resistant rubber hose designed for use with push-lock terminals (clamps not required when used with these terminals). Suitable for low-pressure pneumatic and hydraulic systems, compressed-air tools, welding robots, lubricated compressed-air systems and water supply lines in plastic moulding.

Construction and properties

• Inner tube: synthetic rubber
• Reinforcement: braided polyester fibre
• Cover: fireproof compound
• Resistance to abrasion, oils and weathering
• Temperature range: -40°C to +90°C
• Service pressure: 20 bar

Available items
Item | Code | Ø (mm) | Colour
C290006 | – | 6×13.5 | Black
C290009 | – | 10×16.5 | Black
C290013 | – | 13×20.5 | Black
C290019 | – | 19×29.5 | Black
C290306 | – | 6×13.5 | Red
C290309 | – | 10×16.5 | Red
C290313 | – | 13×20.5 | Red
C290319 | – | 19×29.5 | Red
C290206 | – | 6×13.5 | Blue
C290209 | – | 10×16.5 | Blue
C290213 | – | 13×20.5 | Blue
C290219 | – | 19×29.5 | Blue
C290106 | – | 6×13.5 | Green
C290109 | – | 10×16.5 | Green
C290113 | – | 13×20.5 | Green
C290119 | – | 19×29.5 | Green

Characteristics / Technical specifications

• Material: inner tube in synthetic rubber with braided polyester fibre reinforcement
• Key properties: fireproof, abrasion resistant, oil resistant, weathering resistant
• Recommended applications: low-pressure pneumatic and hydraulic systems, compressed-air tools, welding robots, lubricated compressed-air systems, water supply lines in plastic moulding
• Designed for push-lock terminals (no clamps required with these terminals)
• Temperature range: -40°C to +90°C
• Service pressure: 20 bar
• Available diameters (Ø): 6×13.5 mm, 10×16.5 mm, 13×20.5 mm, 19×29.5 mm
• Available colours: Black, Red, Blue, Green
