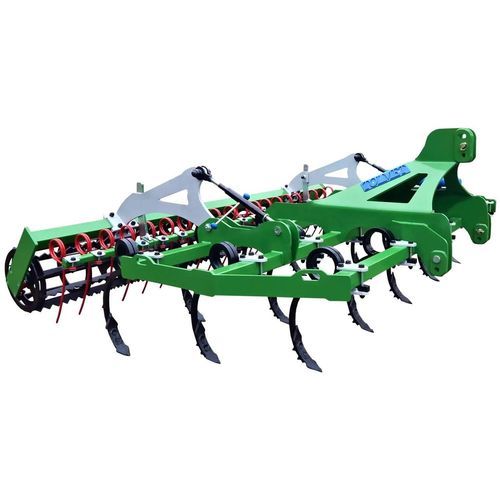

Mounted field cultivator Kultywator series

manual adjustmentwith rollerno stop

Standard equipment: - NON-STOP coulters - Three rows of tines - Straight, rotating coulter - Reinforced hitch - Ø 440mm string roller or Ø 510mm tubular roller - Finger scraper - Manual working depth adjustment Optional equipment: - Points - Route lights - Optional rollers (see table below) Model specifications: - Kultywator 200: Width 2.0 m, 10 tines, Weight 600 kg, Power 60-70 HP - Kultywator 220: Width 2.2 m, 11 tines, Weight 680 kg, Power 70-90 HP - Kultywator 240: Width 2.4 m, 12 tines, Weight 750 kg, Power 80-90 HP - Kultywator 260: Width 2.6 m, 13 tines, Weight 840 kg, Power 90-100 HP - Kultywator 280: Width 2.8 m, 14 tines, Weight 930 kg, Power 95-110 HP - Kultywator 300: Width 3.0 m, 16 tines, Weight 1050 kg, Power 100-120 HP Information about the rollers: - Pipe roller: Ø 350 mm - String roller: Ø 350 mm - Ring roller: Ø 500 mm - V Ring roller: Ø 500 mm Technical specifications / Features: - Brand: Tolmet - Product: Stubble Cultivator - Standard and optional equipment as above - Working widths: 2.0 m to 3.0 m - Number of tines: 10 to 16 depending on model - Weight: 600 kg to 1050 kg depending on model - Required power: 60-120 HP depending on model - Available rollers: Pipe, String, Ring, V Ring (see table for diameters)
