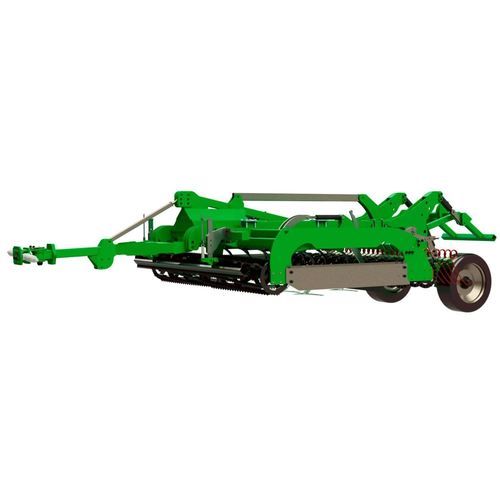

Towed field cultivator Neon 250

with hydraulic adjustmentno stopmanual adjustment

Standard equipment: - Two rows of coulters with exchangeable points, 250 mm - Front string roller Ø 440mm - Rear string roller Ø 440mm - Manual working depth adjustment - Front levelling bar - Central levelling bar - Traction device with the option of attaching a seeder Optional equipment: - Rear levelling bar - Scraper behind the roller - Hydraulic working depth adjustment - Electro-hydraulic block - Route lights - Rear roller Crosskill Ø 380mm or tandem Crosskill Ø 380mm Model specifications: Neon 250 - Working width: 2.5 m - Tines: 10 - Weight: 3000 kg - Required power: 90-110 HP Neon 270 - Working width: 2.7 m - Tines: 11 - Weight: 3150 kg - Required power: 100-120 HP Neon 300 - Working width: 3.0 m - Tines: 12 - Weight: 3300 kg - Required power: 120-150 HP Information about the rollers: - String: Ø 440 mm - Crosskill: Ø 380 mm - Tandem Crosskill: Ø 380 mm Technical characteristics / specifications: - Available working widths: 2.5 m, 2.7 m, 3.0 m - Number of tines (redlice non stop): 10 (2.5 m), 11 (2.7 m), 12 (3.0 m) - Weight: 3000 kg (2.5 m), 3150 kg (2.7 m), 3300 kg (3.0 m) - Required tractor power: 90-110 HP (2.5 m), 100-120 HP (2.7 m), 120-150 HP (3.0 m) - Front and rear string rollers: Ø 440 mm - Optional rear roller: Crosskill Ø 380 mm or tandem Crosskill Ø 380 mm - Manual or hydraulic working depth adjustment - Electro-hydraulic block available as option - Traction device allows seeder attachment
