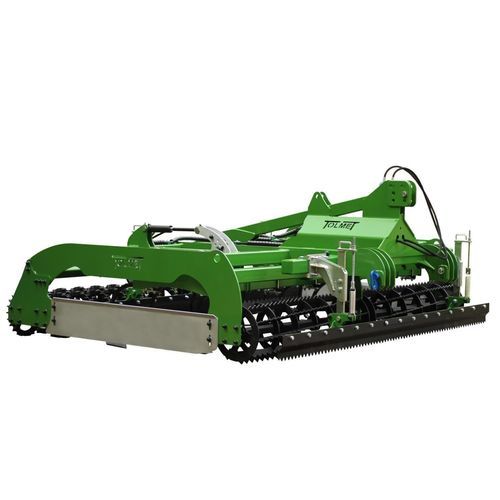

Mounted field cultivator NEON series

with hydraulic adjustmentwith roller

Standard equipment: - Two rows of coulters with exchangeable points 250 mm - Front string roller Ø 440mm - Rear string roller Ø 440mm - Front levelling bar - Central levelling bar - Manual working depth adjustment Optional equipment: - Rear levelling bar - Scraper behind the roller - Hydraulic working depth adjustment - Route lights - Rear roller Crosskill Ø 380mm or tandem Crosskill Ø 380mm Model specifications: - Neon 250: Width 2.5 m, 10 coulters, Weight 1500 kg, Power 90-110 HP - Neon 270: Width 2.7 m, 11 coulters, Weight 1650 kg, Power 100-120 HP - Neon 300: Width 3.0 m, 12 coulters, Weight 1800 kg, Power 120-150 HP Information about the rollers: - String roller Ø 440 mm - Crosskill Ø 380 mm - Tandem Crosskill Ø 380 mm Technical specifications / Features: - Model: Neon 250, Neon 270, Neon 300 - Working width: 2.5 m, 2.7 m, 3.0 m - Number of coulters: 10, 11, 12 - Weight: 1500 kg, 1650 kg, 1800 kg - Required power: 90-110 HP, 100-120 HP, 120-150 HP - Standard rollers: String roller Ø 440 mm (front and rear) - Optional rollers: Crosskill Ø 380 mm, Tandem Crosskill Ø 380 mm - Levelling bars: front, central (standard), rear (optional) - Working depth adjustment: manual (standard), hydraulic (optional) - Other options: scraper behind roller, route lights
