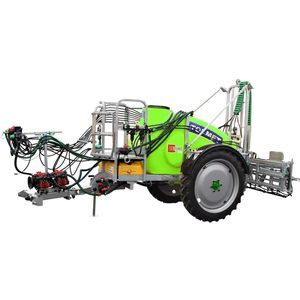

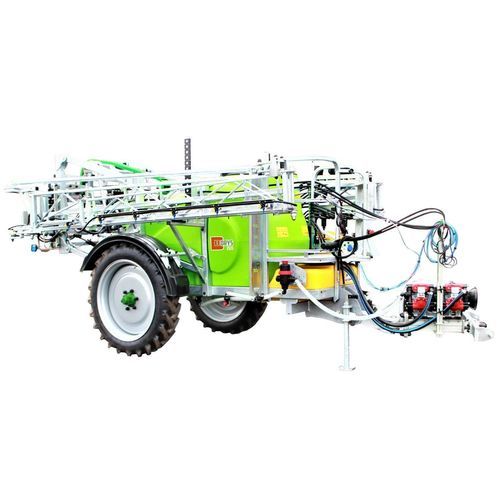

Tractor-mounted sprayer BORYS 1500

hydraulic

Available boom widths: - 15 m, 18 m, 21 m, 24 m Standard equipment: - Main tank with the capacity of 1500l - Clean water tank with tap (for hand washing) - Function for partial or full cleaning of the spraying system - Two Tolveri PU-3/140 pumps - Triple sprayer mounting - Controller Control Panel 7 (ON/OFF - all sections, pressure adjustment +/-) - Electrical and hydraulic block - Hydraulic boom extension, lifting and boom stabilization – Hydro Panel - The frame and the boom are hot-dip galvanised - Fermo 5 constant pressure distributor with seven electrowaves - Chemical dilution tank in the filling sieve - Linear filters - 2 x Anti-foaming hydraulic mixer - Wheels 9.5 x 32 with mudguards - LED route lighting - Working lighting (two directional lamps) - Tractor-mounted swivel hitch - Set of filter wrenches - Tank filling system Optional equipment: - Computer Alfa 200 with Hydro Panel (controlling sprayers and boom) - Side/additional dilution tank - Special spray nozzles - Wheels 9.5 x 36 - Articulated Telescopic Roller - System of liquid suction to the tank Model specifications: - Borys 1515: Length 4700 mm, Width 2850 mm, Height 2500 mm, Weight 1750 kg - Borys 1518: Length 4750 mm, Width 2850 mm, Height 2500 mm, Weight 1800 kg - Borys 1521: Length 4750 mm, Width 2850 mm, Height 2500 mm, Weight 1850 kg - Borys 1524: Length 4800 mm, Width 2850 mm, Height 2500 mm, Weight 2000 kg Weight and dimensions given are approximate only. Technical characteristics / specifications: - Available boom widths: 15 m, 18 m, 21 m, 24 m - Main tank capacity: 1500 l - Clean water tank included - Two Tolveri PU-3/140 pumps - Triple sprayer mounting - Controller Control Panel 7 - Hydraulic boom extension, lifting, and stabilization - Hot-dip galvanised frame and boom - Fermo 5 constant pressure distributor with seven electrowaves - Chemical dilution tank in filling sieve - Linear filters - Anti-foaming hydraulic mixer - Wheels: 9.5 x 32 (standard), 9.5 x 36 (optional) - LED route and working lighting - Tractor-mounted swivel hitch - Tank filling system - Optional: Computer Alfa 200 with Hydro Panel, articulated telescopic roller, special spray nozzles, side/additional dilution tank, system of liquid suction to the tank - Dimensions (L x W x H, mm): 4700-4800 x 2850 x 2500 (depending on model) - Weight (kg): 1750-2000 (depending on model)
