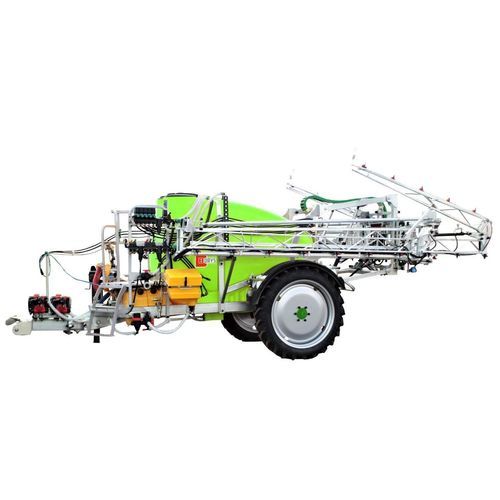

Tractor-mounted sprayer BORYS 3000

hydraulicpneumatic

Available boom widths: - 15 m, 18 m, 21 m, 24 m Standard equipment: - Main tank with the capacity of 3000l - Clean water tank with tap (for hand washing) - Function for partial or full cleaning of the spraying system - Two Tolveri PU-3/140 pumps - Triple sprayer mounting - Pneumatic brakes - Controller Control Panel 7 (ON/OFF - all sections, pressure adjustment +/-) - Electrical and hydraulic block - Hydraulic boom extension, lifting and boom stabilization – Hydro Panel - The frame and the boom are hot-dip galvanised - Fermo 5 constant pressure distributor with seven electrowaves - Chemical dilution tank in the filling sieve - Linear filters - 2 x Anti-foaming hydraulic mixer - Wheels 9.5 x 32 with mudguards - LED route lighting - Working lighting (two directional lamps) - Tractor-mounted swivel hitch - Set of filter wrenches - Tank filling system Optional equipment: - Computer Alfa 200 with Hydro Panel (controlling sprayers and boom) - Side/additional dilution tank - Special spray nozzles - Wheels 9.5 x 36 - Articulated Telescopic Roller - System of liquid suction to the tank Model specifications: - Borys 3015: Length 5100 mm, Width 2850 mm, Height 2500 mm, Weight 2150 kg - Borys 3018: Length 5150 mm, Width 2850 mm, Height 2500 mm, Weight 2200 kg - Borys 3021: Length 5150 mm, Width 2850 mm, Height 2500 mm, Weight 2350 kg - Borys 3024: Length 5200 mm, Width 2850 mm, Height 2500 mm, Weight 2500 kg Weight and dimensions given are approximate only. Technical characteristics / specifications: - Model: BORYS 3000 (Borys 3015, 3018, 3021, 3024 variants) - Main tank capacity: 3000 liters - Available boom widths: 15 m, 18 m, 21 m, 24 m - Length (Borys 3024): 5200 mm - Width: 2850 mm - Height: 2500 mm - Weight (Borys 3024): 2500 kg - Standard and optional equipment as detailed above
