Grain silo
metalhopper

Grain silo - Toy Rene - metal / hopper
Grain silo - Toy Rene - metal / hopper
Grain silo - Toy Rene - metal / hopper - image - 2
Grain silo - Toy Rene - metal / hopper - image - 3
Grain silo - Toy Rene - metal / hopper - image - 4
Grain silo - Toy Rene - metal / hopper - image - 5
Grain silo - Toy Rene - metal / hopper - image - 6
Add to favorites
Compare this product

Characteristics

Application
for grain
Material
metal
Form
hopper
Volume

Min.: 2 m³
(71 ft³)

Max.: 30 m³
(1,059 ft³)

Description

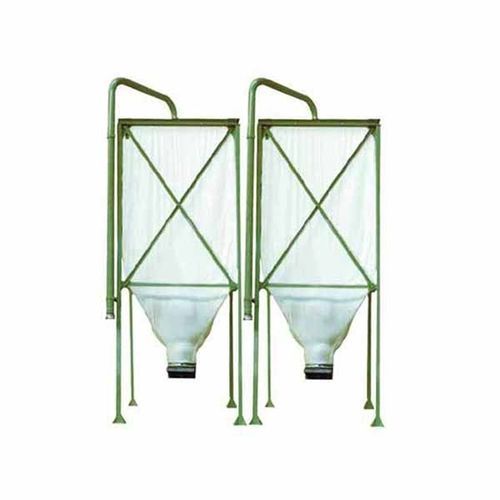

Hot galvanized or painted metal frame, TOY Group’s soft silos range from 2 to 30 m3 of storage capacity. Dimensions from 1.10 to 2.80M squared. Height from 3.50 to 6.45M On a hot galvanized or painted metal frame, our flexible silos range from 2 to 30 m3 of storage capacity, ranging in size from 1.10 to 2.80 meters squared, and from 3.50 to 6.45 meters in height. Filtering layer on cover and 60-degree background can be either: Standard roofs, heavy series (carbonate) or PVC canvas (waterproof) Galvanized metal frame Pneumatic or screw filling Standard canvas (for light products less than 0.7 of specific weight) Heavy series canvas (for products of a density – 1.2 PS) PVC-coated composite canvas (for hydrophilic products of less than 0.9 PS density). Options: Pick-up by rigid or flexible screw, suction Anti-bridging Pneumatic filling Decompression
