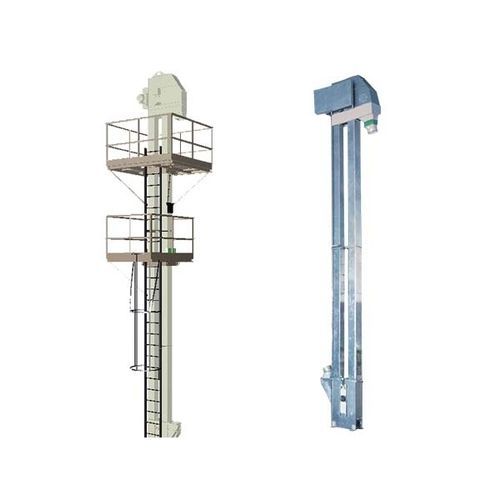

Vertical bucket elevator

20 or 30/10th galvanized steel. For handling cereals and floury products. Equipped, as an option, with a safety cage ladder, a rest platform, an intermediate platform, a very large surface head platform (4M2) allowing ease and safety of work. Buckets attached to a very high quality strap (from 8.5 to 11 to M/L. Flow rates of 40, 70 or 135m3/h. The pulley/belt transmission engine is powered by engines from 1.5kw to 15kW depending on speeds and heights. René TOY bucket lifts: 20/10th or 30/10th galvanized steel depending on the model. Dedicated to the handling of cereals and flour products. Their galvanized steel design allows for outdoor (or indoor) use and ensures a long life. Equipped, as an option, with a safety cage ladder, a rest platform and an intermediate platform (from 12m) and a very large surface head platform (4M2) allowing ease and safety of work during various interventions (maintenance, etc.). The buckets attached to a very high quality strap are numbered from 8.5 to 11 per linear meter allowing flows of 40, 70 or 135m3/h. The pulley/belt transmission engine is powered by engines from 1.5kw to 15kW depending on speeds and heights. To meet all the requirements of our customers, many accessories add to the range of our elevators (e.g. multi-direction box, 2nd entry pocket, etc.). Height 6 to 32 meters From 1.5 kW to 15 kW Flows rates 40, 70, 135m3 2 types of entries Head bridges and mid-to-cool platforms Options: An additional entry bracket Buckets available in two sizes: flow rates 40 and 70 m3/hour (dim: width 135mm x depth 125mm x height 85mm; volume 0.7 litres)
