Mapping mobile app WM-Survey II™

navigationmeasurementagricultural

Overview

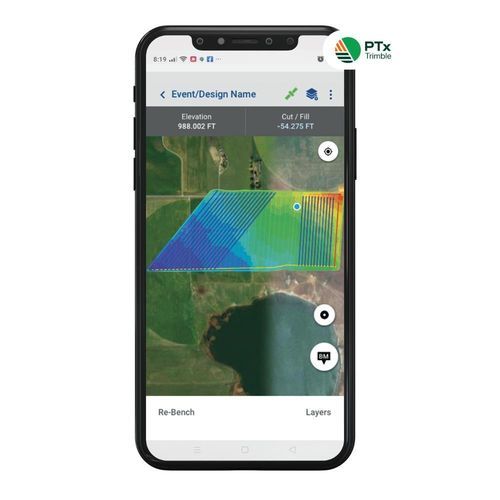

WM-Survey II™ is a free-to-download mobile application designed to simplify basic field surveys for agricultural land management. It automates creation of terrace and waterway cross-section profiles and can auto-create rice levee designs. The app also generates 3D surface control files and navigational guidance lines for compatible displays, enabling land forming work to start on-site without waiting for office-based designs.

Why choose WM-Survey II?

• Suitable for users at any experience level: guided workflows reduce survey errors and speed data collection for agricultural projects.
• Customisable: optional advanced modules add terrace, waterway and rice levee design capabilities and enable export of 3D control and feature-line guidance files for compatible displays.
• Supports on-farm maintenance: allows operators and farmers to carry out maintenance and extend the service life of terraces and waterways, lowering contractor costs and reducing yield loss.

Optional Advanced Features
Terrace and Waterway Designs
Use the guided five-step workflow to automatically create basic terrace or waterway designs that divert water to prevent erosion and ponding. The app auto-generates 3D control files and feature-line guidance files for compatible displays so land forming can begin immediately.

Rice Levee Designs
The rice levee workflow uses a four-step guided process to create levee designs based on field elevation and target specifications. Feature-line guidance files are exported upon design creation to support timely levee installation and reduce the gap between design and implementation.

Why conduct a survey?
Field surveys provide elevation and positional data needed to plan land forming, grading and drainage for agricultural sites. With WM-Survey II™ and a compatible GNSS receiver you can record elevation points to produce a topographic or survey map for downstream design workflows.

• Identify water flow patterns
• Determine efficient routes for water removal or retention
• Select optimal locations for terraces, waterways, gates and pumps
• Define watershed locations and sizes
• Locate strategic points for drainage installation

Features / Technical specifications

• Phones and tablet compatibility: Android version 12 and above is recommended, with GNSS receiver connected via Bluetooth®.
• Not compatible with Apple products at this time.
• PTx Trimble display compatibility (via App Central): compatible with GFX-750™, GFX-1060™, and GFX-1260™ displays when connected to NAV-900 or NAV-960 guidance controllers for high-precision surveys.
• Design features are not available on PTx Trimble displays; RTK correction is preferred for surveys to ensure a high-accuracy topographic map.
