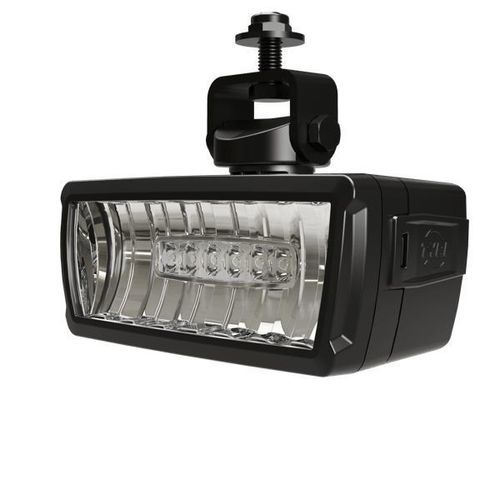

LED work light 0717 G2

for agricultural vehicles

Description The TYRI 0717 G2 compact work light builds on the proven 0717 platform with a redesigned housing and advanced optics to deliver higher output, improved light control and longer service life in demanding environments. The engineered housing increases durability and protects internal components from vibration, dirt and harsh weather while the compact size simplifies integration on space-restricted vehicles and installation across multiple machine platforms. An upgraded optical system provides a more uniform, efficient light pattern that reduces glare, improves operator comfort during long shifts and increases usable light on the work area to support safer operation in forestry, agriculture, construction and material handling. With 2,800 effective lumen the 0717 G2 provides bright, precise illumination from a small footprint to support high productivity during night work. TYRI in-house testing ensures consistent quality and compliance with OEM standards.

Variants Effective Lumen | Machine Voltage | Amp Draw 12 V | Amp Draw 24 V | Power | Colour Temperature | Lens Pattern | EMC | ECE
2800 eLm Short Range | 12 V | 2.5 A | - | 30 W | 5700 K | Short Range | 5 | R10
2800 eLm Short Range | 24 V | - | 1.3 A | 30 W | 5700 K | Short Range | 5 | R10

Technical specifications

• Brand: TYRI
• Model: 0717 G2
• Effective lumen: 2800 eLm (Short Range)
• Light source: LED
• Machine voltage: 12 V and 24 V options
• Amp draw (12 V): 2.5 A
• Amp draw (24 V): 1.3 A
• Power: 30 W
• Colour temperature: 5700 K
• Lens pattern: Short Range
• EMC: 5
• ECE: R10
• Mounting options: Hanging, Standing, Swivel
• UL certification: No
• Compact, durable housing designed to protect against vibration, dirt and harsh weather
• Upgraded optics for uniform, efficient beam distribution and reduced glare
• Designed for demanding duty cycles in forestry, agriculture, construction and material handling
• Product Data Sheet available (EN and US)
