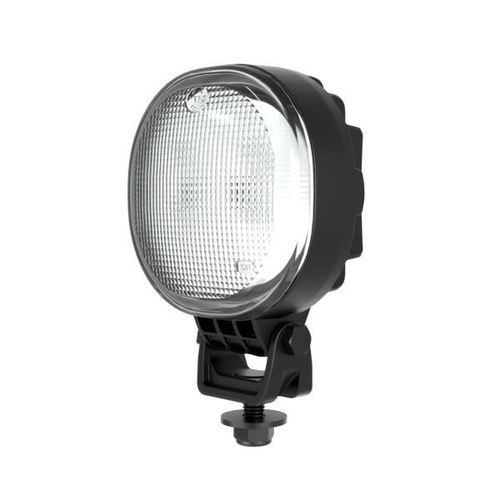

LED work light 0909 COMPACT+

for agricultural vehicles

Description
The 0909 Compact+ is a family of LED work lights and LED BluePoint and RedPoint warning beacons. The unit features a curved lens that helps snow shed and reduces buildup. Its compact footprint enables installation on machines with confined spaces and on forklift trucks, while offering configurable lens patterns and mounting options.

Suggested application
The 0909 Compact+ range is adaptable for material handling, agriculture and other industrial applications worldwide. It suits machines that require a compact, efficient LED task or warning light with selectable luminous output and beam patterns.

Product details

• Light source: LED
• Mounting: Hanging, Standing, Pedestal
• Sectors: Agriculture; Material handling
• UL certification: Yes

Variants (table)
Effective Lumen | Machine Voltage | Amp Draw 12 V | Amp Draw 24 V | Power | Colour Temperature | Lens Pattern | Part no. | EMC
750 | 12-48 V | 1.2 A | 0.6 A | 14 W | 5000 K | Narrow symmetric; Medium symmetric; Wide; Asymmetric; Spot | LLU-134-1, LLU-133-1, LLU-132-1, LLU-135-1 | 3 & 5
1400 | 12-48 V | 1.7 A | 0.9 A | 21 W | 5000 K | Narrow symmetric; Medium symmetric; Wide; Asymmetric; Spot | LLU-138-1, LLU-137-1, LLU-136-1, LLU-139-1 | 3 & 5

Technical specifications

• Family: 0909 Compact+
• Light source: LED
• Machine voltage: 12-48 V
• Effective lumen options: 750, 1400
• Power options: 14 W, 21 W
• Amp draw (12 V): 1.2 A, 1.7 A
• Amp draw (24 V): 0.6 A, 0.9 A
• Colour temperature: 5000 K
• Lens patterns: Narrow symmetric; Medium symmetric; Wide; Asymmetric; Spot
• Mounting: Hanging, Standing, Pedestal
• Part numbers: LLU-132-1, LLU-133-1, LLU-134-1, LLU-135-1, LLU-136-1, LLU-137-1, LLU-138-1, LLU-139-1
• UL certification: Yes
• EMC: 3 & 5
