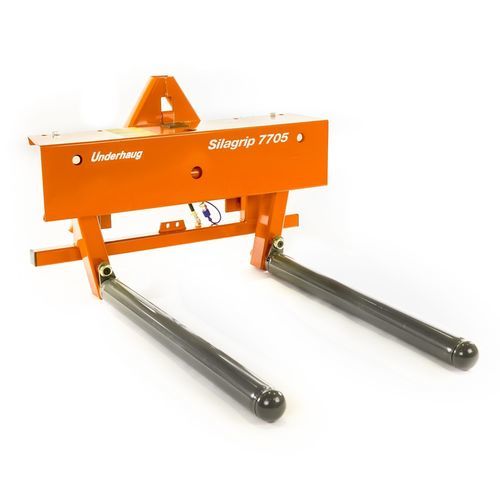

Round bale grab UM-7705

With Silagrip I (UM-7705) bales can be transported and stacked without damaging the stretch film. The roller tine system consists of 1 pair rollers, bearings and Kverneland standard bale spears. The roller arms handle the bales very gently. It’s easy to convert UM – 7705 Silagrip Grapple into an ordinary bale fork, just pull the rollers off from the spears. This is done in a few minutes. An upper bale spear can be supplied as an option. The upper bale spear is needed to rotate bales. It also provides a secure transportation. Silagrip I requires one double-acting hydraulic outlet. Supplied with 1.5 m hydraulic hoses and ISO couplings. Regarding couplers (for weld-on, directly or on plates) for front loader, contact the front loader dealer. 3-Point point mounting Category II. Technical specifications: Weight - 175 kg Length - 1500 mm Height - 700 mm Claw length - 1100 mm Grapple width - 1800 mm Max. bale diameter - 1400 mm
