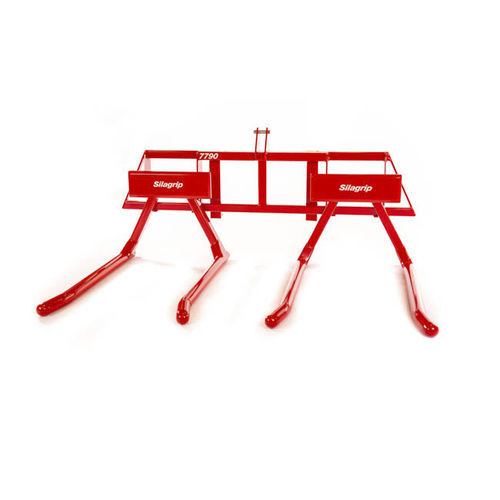

Round bale grab UM-7790

Rational and gentle transportation of 2 round bales UM-7790 Double Round Bale Lifter is quick and easy to operate. For mounting in the tractor’s three-point linkage. It’s also possible to have a double round bale lifter at the rear and a UM-7780 at the front for transporting 3 bales at the same time. With wrapped round bales and relatively short transport distances, the double round bale lifter is the perfect solution. The working principle is similar to the single bale lifter UM-7780. UM-7780 has two lifting tubes welded on separate wsemivertical arms with an outer and inner limiter. When the bale lifter is lowered to the ground the semi-vertical arms with lifting tubes spread automatically to the outer limiter. Then pick up the bale. When lifting, the semi-vertical arms with lifting tubes swing together and hold the bale. The double round bale lifter is actually a UM-7780 with a wider frame and has two pairs of semi-vertical arms with lifting tubes instead of one pair. In other words, a twin of the single Bale lifter. How to use: Pick up one bale and unload it close to (10 to 20 cm) another bale. Pick up both bales. To avoid damaging the stretch film you must be careful when handling the bales. This way you avoid damaging the film. To pick up the first bale it does not matter if it is picked up on the right or left side of the bale lifter, simply drive to the second ball so that it can be laid 10-20 cm from it. Technical specifications: Weight - 150 kg Max. bale diameter - 1200 mm Max round bale weight - 900 kg x 2
