Mechanical weeder WEEDELETE® ZRS

tractor-mountedinter-row

Overview

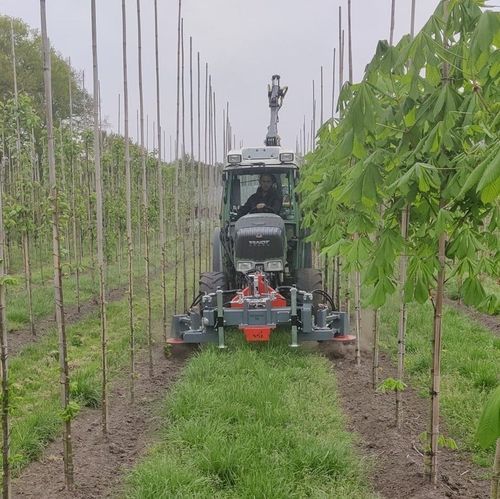

This intra-row hoe is designed to weed black strips in tree nurseries while preserving grass strips in paths. The WEEDELETE® ZRS uses patented rotating hoes that cultivate the topsoil in the black strips without damaging crops. It can be mounted on the front or rear of a tractor and operates effectively at low engine power. The machine is ground-following, allows a good working speed and provides stepless adjustment of depth and working width for optimum results.

Mowing head (optional)
For year-round versatility, the WEEDELETE® ZRS can be fitted with an optional mowing head. The quick-change system enables switching between mowing and hoeing within minutes.

Highlights

• Patented rotating-hoe system for gentle weed removal
• Ecologically responsible mechanical weeding
• Worldwide use in nurseries and similar crops
• Shallow cultivation to preserve soil structure and soil life

Features

• Required power: minimum 25 HP
• Minimum hydraulic output: 20 liters
• Stepless, easily adjustable depth control
• Stepless, easily adjustable working width
• Adjustable ground pressure of the swing rotor depending on soil type (sandy, peat, clay)
• Leveling effect on soil surface
• Ground-following design
• Swing rotor version available with hydraulic roller probe
• Maximum working speed approximately 5 km/h

Multimedia
Demo and action videos are available showing the WEEDELETE® ZRS in operation.

Technical specifications

• Model: WEEDELETE® ZRS
• Application: intra-row hoeing of black strips in tree nurseries while sparing grass paths
• Attachment: front or rear tractor mounting
• Operational requirement: minimum 25 HP engine power
• Hydraulics: minimum hydraulic output 20 liters
• Depth control: steplessly adjustable
• Working width: steplessly adjustable
• Ground pressure: adjustable depending on soil type (sandy, peat, clay)
• Working mode: ground-following; swing rotor version available with hydraulic roller probe
• Working speed: up to approximately 5 km/h
• Optional equipment: quick-change mowing head for switching between mowing and hoeing
• Design intent: shallow soil cultivation to preserve soil structure and soil life
