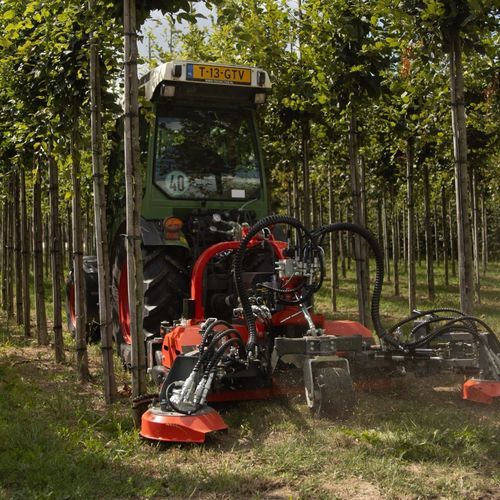

Mechanical weeder WEEDELETE® LM

tractor-mountedfor orchards

Overview
The WEEDELETE® LM mows the grass strip in the same working pass as hoeing the black rows in tree nurseries and orchards. Rear-mounted and ground-following, it combines patented systems to deliver year-round, ecological maintenance with low engine power and efficient working speed. Hoeing depth and ground pressure are adjustable to suit soil conditions.

Mowing head and operation
The WEEDELETE® LM can be fitted with an optional mowing head for full year-round versatility. A quick-change system allows the operator to switch between mowing and hoeing within minutes. The machine is offered in fixed and variable working-width versions; the variable version can be fitted with the WEEDELETE® automatic side-shift system.

Unique selling points

• Innovative, patented solution for combined mowing and hoeing
• Ecological weed control preserving soil life
• Proven in nurseries and orchards worldwide
• Shallow soil cultivation to maintain soil structure

Features

• Fixed or variable working width
• Required power: minimum 25 HP
• Minimum hydraulic output: 20 liters
• Easily adjustable hoeing depth
• Adjustable ground pressure of the swing rotor depending on soil type (sandy, peat, clay)
• Leveling effect on the soil surface
• Environmentally friendly operation
• Version with swing rotor and hydraulic roller probe
• Maximum working speed: approx. 5 km/h (actual driving speed depends on plant spacing)

Technical specifications

• Model: WEEDELETE® LM (mowing–hoeing machine)
• Mounting: rear of tractor
• Working-width options: fixed or variable (variable can be fitted with automatic side-shift)
• Required engine power: minimum 25 HP
• Minimum hydraulic output: 20 liters
• Ground-following design with adjustable hoeing depth
• Adjustable ground pressure of the swing rotor to suit soil types (sandy, peat, clay)
• Optional mowing head with quick-change system for fast switch between mowing and hoeing
• Optional swing rotor version with hydraulic roller probe
• Maximum working speed: ± 5 km/h (actual driving speed depends on plant spacing)
• Designed for shallow soil cultivation to preserve soil structure and soil life
• Operates optimally at low engine power
