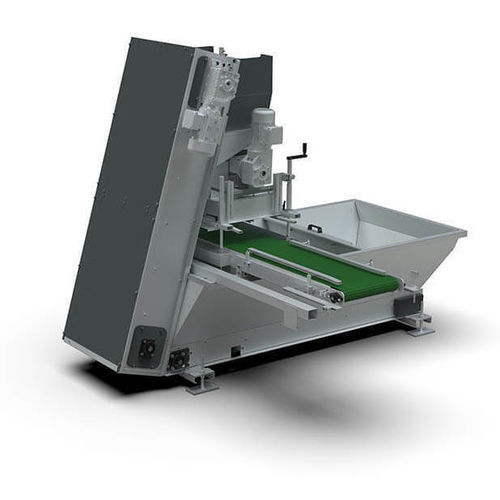

Automatic tray filler Twin

Product description
The Twin Filler is a high-capacity tray filling machine designed for filling trays, flats and packs with substrate/soil. It features a double twin-rotor filling head, an adjustable filling density via frequency control and a standard soil recycling system with a 1000 L hopper.

Highlights

• Uniform and clean filling with brush finishing
• Capacity up to 1,000 trays per hour
• Adjustable filling density and rotor speed

Detailed description
The machine uses a filling head equipped with two rotors to deliver fast, consistent filling. Rotor speed is regulated by a frequency controller to set the required filling density. After filling, trays pass under brushes to remove excess substrate and ensure a uniform surface. Soil is conveyed from the hopper to the elevator by a belt conveyor; belt speed is adjustable to match supply and demand and excess substrate is returned to the hopper for reuse. Hopper capacity: 1000 L.

Options

• Destackers for various tray types (optional, can be mounted on the conveyor)
• Siemens display for integrated line control and synchronous speed management
• Left- and right-handed versions available
• Output conveyor belt for filled trays
• Soil sensor unit for automatic substrate supply
• Soil gate / sluice gate

Other performance & product data found on the page

• Suitable for trays with recommended max W x H = 400 x 210 mm (max. length depends on belt length)
• Alternate listed max tray size: 600 x 400 x 210 mm
• Machine dimensions (listed): 247 x 284 x 223 cm
• Soil hopper capacity: 1000 L
• Soil extension (listed): 1500

Technical specifications

• Model name: Twin Filler
• Filling principle: double twin-rotor filling head (two rotors)
• Throughput: up to 1,000 trays/hour
• Tray compatibility: trays, flats and packs; recommended max W x H = 400 x 210 mm; alternate max size 600 x 400 x 210 mm; length belt-dependent
• Filling density: adjustable via frequency controller (rotor speed control)
• Post-fill finishing: brushes for clean, uniform result
• Soil handling: belt conveyor to soil elevator; adjustable belt speed; excess soil recycled to hopper
• Hopper capacity: 1000 L
• Standard: soil recycling system
• Options: destackers, Siemens display for integrated lines, left/right versions, output conveyor, soil sensor unit, soil gate/sluice gate
• Machine dimensions (listed): 247 x 284 x 223 cm
