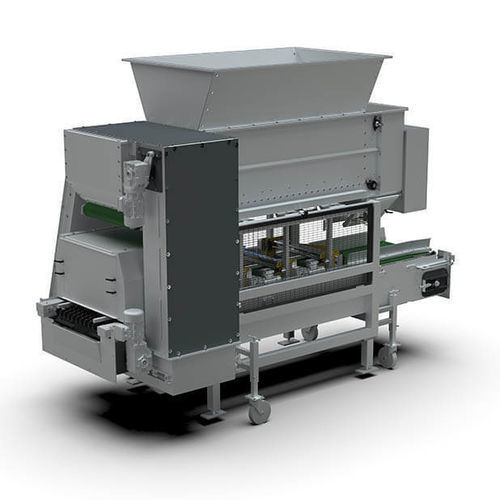

Manual tray filler Versa

big volumes

Overview
The Versa Filler is a plug-tray filling machine designed for high-speed, uniform substrate filling and precise compaction. It is fully adjustable to tray size, plug diameter and production capacity, and is optimized for nursery and propagation operations.

Key features

• All internal components height- and speed-adjustable
• Innovative soil return system with 1000 L hopper
• Multiple compression options for consistent substrate density

Perfect filling result
Five interchangeable substrate compression processes ensure uniform filling and finishing:

• Rubber compression roller for standard compaction
• Second rubber compression roller for extremely high compaction
• Driven dibbling plate unit for precise placement
• Spiral rotating brush to remove excess substrate for a clean edge
• Second spiral rotating brush for uniform finish across trays

High versatility
Height-adjustable components and manual speed controls allow tailored filling profiles. Ten air nozzles remove loose substrate for a clean operation. Internal assemblies are easily interchangeable for fast service and format changes.

Innovative soil return system
A 1000‑liter hopper above the transport conveyor enables overhead feeding and space-saving layout; an optional extension increases capacity to 1850 L. The soil elevator features manual flow adjustment and a low-noise, low-wear design.

Technical specifications

• Model: Versa Filler (plug trays version)
• Capacity: up to 500 trays/hour
• Clearance: 400 mm high × 600 mm wide (suitable for long-side leading fill)
• Maximum tray size: 600 × 400 × 210 mm
• Machine dimensions (listed): 390 × 190 × 280 cm
• Soil hopper capacity: 1000 L (standard); optional extension to 1850 L
• Soil elevator: manually adjustable flow, improved low-noise design
• Soil removal: 10 air nozzles for clean operation
• Compression options: five exchangeable substrate compressing processes (see list above)
• All internal components: height adjustable with manually adjustable speed control
• Service friendliness: internal components easily interchangeable
