Impact sprinkler 35 Series

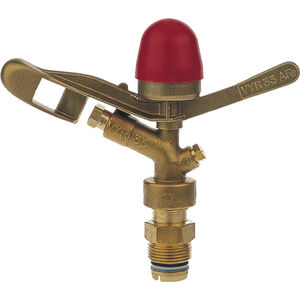

VYR-35 AG FULL-CIRCLE BRASS 3/4" SPRINKLER VYR-35 The sprinkler VYR-35 is the "flagship" of our catalog. It is an agricultural full circle sprinkler, made ​​of brass and with two connection references, 3/4" male or 3/4" female. Its axis and springs are made of stainless steel, and their O-rings and washers in stainless steel, Teflon and special polycarbonates to resist contact with the more aggressive fertilizers in market . The wide range of brass or plastic nozzles offer a number of possible combinations. This sprinkler is designed to work under a flow range between 660 and 3300 l/h, at pressures between 1.75 and 4.5 BAR and a cover range between 13 and 18 meters of diameter. The sprinkler VYR-35 can work with one or two nozzles, both nozzles are 26 degree angle to the horizontal plane. Their average time of rotation comes to be approximately 40 sec. / 360 (3 BAR, 4.40 x2, 40 mm). APPLICATIONS This model is compatible with almost any type of crop and with a wide range of pluviometric and spacing conditions, suitable for a large number of different crop types. Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.
