Impact sprinkler 150

impact sprinkler
impact sprinkler
Add to favorites
Compare this product


Characteristics

Type
impact
Reach

Max.: 37 m
(121'04" )

Min.: 25 m
(82'00" )

Flow

Max.: 28,000 l/h
(7,396.82 us gal/h)

Min.: 6,200 l/h
(1,637.87 us gal/h)

Description

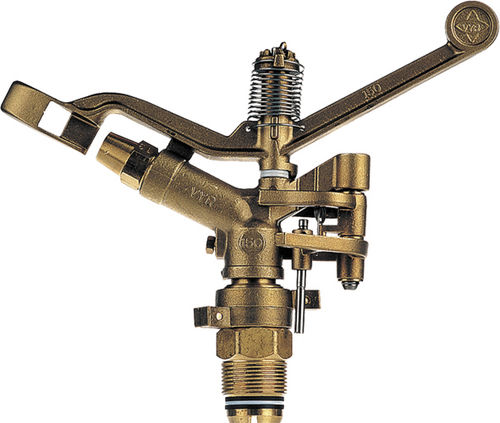

VYR-150 AG BRASS-CIRCLE SPRINKLER (BRASS 1 1/4") The sprinkler VYR-150 is a part-circle agricultural sprinkler, made of brass with 1 1/4" male connection. Its axis and springs are made of stainless steel, and their O-rings and washers in stainless steel, Teflon and special polycarbonate to withstand contact with the most aggressive fertilizers in the market. The wide range of brass mouthpieces offer a number of possible combinations among nozzles. This sprinkler is designed to work under some flow ranges between 6200 and 28000 l / h, at pressures between 4 and 8 BAR and cover a range of between 50 and 75 meters in diameter. The main nozzle is 27° degree angle to the horizontal plane and the secondary 4 °. Their average time of rotation comes to be approximately 30 sec./rot (3 BAR, 4.40x2,40 mm). For optimum uniformity coefficient, our technicians recommend the use of the sprinkler heads with a spacing between lines and 18x18 meters to 38x38 meters rectangular frames, and 18x18 meters to 42x42 meters triangular frames. The most common use given is irrigation of cereals such as wheat, barley or corn, alfalfa, beets, leafy vegetables sturdy vegetables and tubers. It is widely used as a spray tip PIVOT APPLICATIONS Horticultural plantations, cereals, tubers, leguminous plants and fruit trees. Often used for Pivot points.
