Irrigation valve 6110 series

regulatinghydraulicmetal

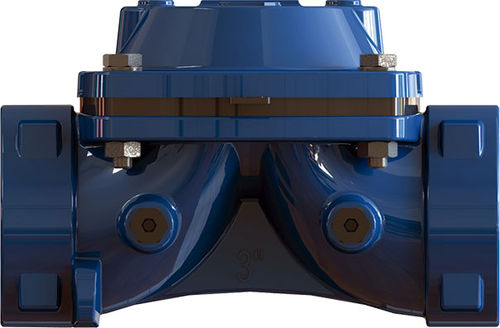

THREAD Hydraulic METAL Valves VYR-6110 THREAD HYDRAULIC METAL VALVES VYR-6110 The valve VYR-6110 is a metal hydraulic valve for full flow through elbows and straight sections. FEATURES Metal hydraulic valves for full flow through elbows and straight sections. Body and cover made of high quality cast iron. EPDM diaphragms reinforced with fabric. Always clean because of its brass filter with steel mesh built into all assemblies. Assembled with screws and stainless steel spring. Working temperature between 36-176ºF (2º-80ºC). Recommended working pressure of 15-174 PSI (1-12 BAR). Opening and closing response time of 0.7 seconds. Resistance test carried out for 25,000 cycles at 218ºF and 176ºF (15 BAR and 80ºC). Flow range between 600-3800 GPH (38 y 240 l/min). Removable from the upper section for repair or replacement of parts. Complies with standard UNE 68-074-86/ISO 7714.
