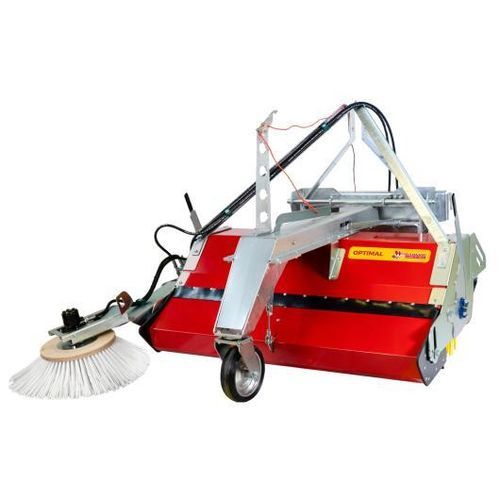

Mounted sweeper Optimal 1600

groundcarefront-mountrear attachement

Short description
The mounted sweeper Optimal 1600 is equipped with heavy-duty load wheels and oscillating-mounted brush rolls that adapt to uneven surfaces to ensure thorough cleaning. The collection hopper can be lifted to allow free sweeping. Available for both front and rear attachment and optionally upgradeable with an additional side brush.

Features

• Oscillating-mounted brush rolls for optimal adaptation to uneven surfaces
• Heavy-duty load wheels
• Liftable collection hopper for free sweeping
• Available for front and rear attachment
• Optional additional side brush
• Adapter plates enable rear or front mounting on various carrier vehicles

Technical data (table)
Drive: Gerotor motor
Working width: 1600 mm
Brush diameter: 520 mm
Nominal speed: approx. 200 rpm
Weight: approx. 280 kg
Tyres: 3 for front attachment, 2 for rear attachment
Flow rate: 20 - 50 l/min
Max. operating pressure: 180 bar
Collection hopper depth: 360 mm
Collection hopper emptying: mechanical; hydraulic optional (extra cost)
Swivel: mechanical; hydraulic optional (extra cost)
Accessories: adapter plates for front or rear mounting on various carrier vehicles
Attachment kit for: various carrier vehicles

Characteristics / Specifications

• Drive: Gerotor motor
• Working width: 1600 mm
• Brush diameter: 520 mm
• Nominal speed: approx. 200 rpm
• Weight: approx. 280 kg
• Tyres: 3 for front attachment; 2 for rear attachment
• Flow rate: 20 - 50 l/min
• Max. operating pressure: 180 bar
• Collection hopper depth: 360 mm
• Emptying: mechanical; hydraulic optional (extra cost)
• Swivel: mechanical; hydraulic optional (extra cost)
• Accessories & attachment kit: adapter plates for various carrier vehicles (front or rear mounting)
