Mounted sweeper Optimal 2300

groundcarefront-mountrear attachement

Overview

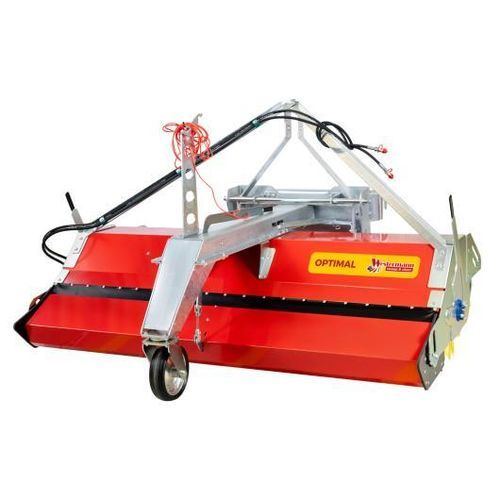

The Attachment sweeper Optimal 2300 is a mounted sweeper with a 2300 mm working width. Pendulum-suspended brush rollers adapt to uneven surfaces to ensure residue-free cleaning. The unit can be operated with or without a collecting tray, mounted front or rear on a carrier vehicle, and upgraded with an optional additional side brush.

Key features

• Pendulum-suspended brush rollers for optimal adaptation to uneven surfaces
• Operable with or without a collecting tray
• Front or rear mounting options
• Optional additional side brush
• Mountable via adapter plates to various carrier vehicles

Technical specifications

• Drive: Gerotor engine
• Working width: 2300 mm
• Brush diameter: 520 mm
• Recommended speed: approx. 200 1/min
• Weight: approx. 315 kg
• Tyres: 2 with rear attachment, 3 with front attachment
• Flow rate: 20–50 l/min
• Maximum operating pressure: 180 bar
• Depth of collecting box: 360 mm
• Emptying of collecting box: mechanical; hydraulic option (surcharge)
• Swivelling: mechanical; hydraulic option (surcharge)
• Accessory: adapter plates for rear or front mounting on various carrier vehicles
• Mounting options: various carrier vehicles
