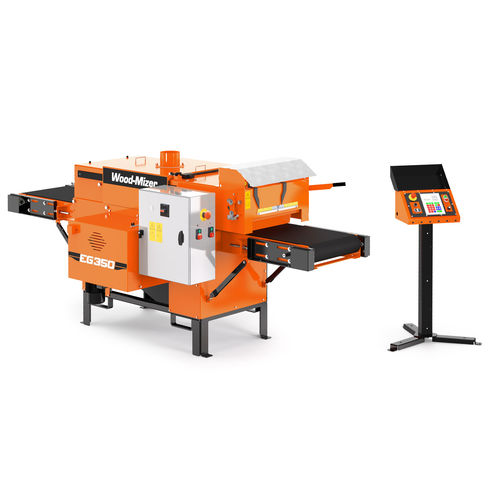

Circular sawmill EG350
horizontalstationaryelectric

circular sawmill
circular sawmill
circular sawmill
circular sawmill
circular sawmill
circular sawmill
circular sawmill
Add to favorites
Compare this product


Characteristics

Type
circular
Form
horizontal
Construction
stationary
Other characteristics
electric

Description

Large capacity twin-blade edger Edge boards up to 100mm thick and maximise the productivity of your sawmill with this heavy-duty edger. Benefits •Electronic Setworks boost Productivity •2 Circular Blades. 1 Adjustable Blade. •Feed Speed 0-20 m per minute The EG350 is a heavy-duty edger that can successfully produce edged boards from larger timbers up to 100mm thick and maximise the productivity of your sawmill. Powered in-feed and out-feed belts move boards through the edger. The moveable control console includes a variable feed knob to adjust the feed rate from 0 up to 20m per minute, depending on the size of the boards being edged. The EG350 is supplied with two circular sawblades that move in and out from the centre. Each 400mm cutting blade is powered individually by an 8 kW electric motor – providing lots of power for quickly processing thick hardwood slabs into finished boards. POWER Power:2 x 8 kW Electric CUTTING CAPACITY Max. Material Width:500 mm Max. Width of Cut:400 mm Min. Width of Cut:6 cm Max. Board Thickness:100 mm Min. Board Thickness:15 mm Min. Board Length:110 cm CIRCULAR BLADE Blade Adjustment:Electric Number of Blades:2 Diameter:400 mm Thickness:4 mm Kerf:4 mm Number of Teeth:36
