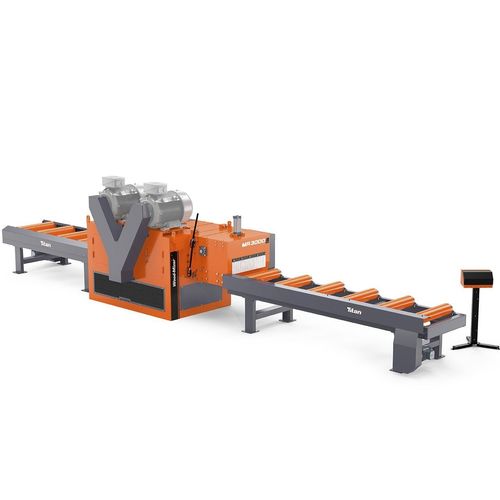

Circular sawmill MR3000

horizontalstationaryelectric

Our multirips are ideal workhorse machines, producing the majority of finished product in most of our sawmills. The simplicity of our design, coupled with solid construction and plenty of power, produce high throughput and top quality results. Multirips are capable of making multiple high tolerance cuts in a single pass. Proper alignment of the cant going into the Multirip produces excellent throughput and recovery. Optical sensors detect the presence of material, activating pneumatically assisted driven hold-downs to apply pressure down onto the cant, and guiding the timber accurately through the cut. The high accuracy on board thickness along with the excellent cutting finish achieved by these circular saws result in improved recovery savings further down the line in the dry-milling/ finishing process. Features •Heavy duty steel frame construction •Optical sensor controlled pneumatic hold-downs •Many optional add-ons •Single or double arbour configuration •Secondary anti-kickback unit POWER SELECTIONS Power Selections:2 x 45kW (60HP) electric CUTTING CAPACITIES Max. Material Thickness:160mm (6") BLADE Blade Diameter:320 mm (12 1/2") Blade Kerf:5 mm (0.195”) FEED SYSTEM & OPERATION Feed Speed:0-40 m/min (0-130 ft/min) Board Kickback Prevention:Anti Kick-back fingers Material Hold-down:Optical Sensor activated Powered Pneumatic Roller Hold-downs Feed Motor:3kW (4HP) Scanning:Optical Material Scanner System Operator Controls:Stationary Control Station Feed System:Variable Speed Power Feed Options:In-Feed and Out-Feed Tables
