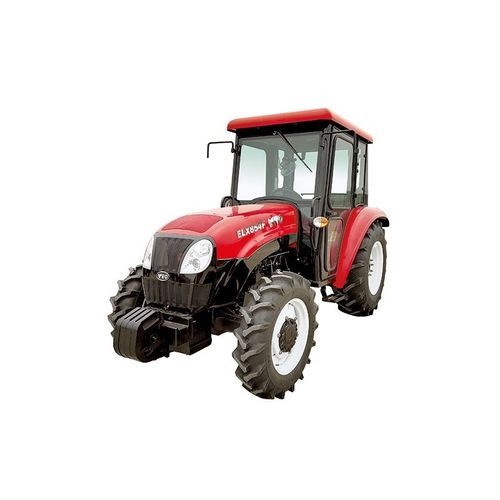

Narrow tractor ELX series
hydrostaticarboriculturevineyard

narrow tractor
narrow tractor
narrow tractor
narrow tractor
narrow tractor
narrow tractor
Add to favorites
Compare this product


Characteristics

Type
narrow
Transmission
hydrostatic
Applications
vineyard, arboriculture
Number of cylinders
4-cylinder
Other characteristic
compact, wide, with cab, high horsepower
Engine power

75 kW, 85 kW, 95 kW
(102 hp, 116 hp, 129 hp)

Wheelbase

2,184 mm
(86 in)

PTO speed

2,400 rpm
(15,079.6 rad.min-1)

Maximum speed

Max.: 28.5 km/h
(17.7 mph)

Min.: 1.7 km/h
(1.1 mph)

Total length

4,250 mm
(167.3 in)

Total height

2,275 mm
(89.6 in)

Description

•The series of narrow tractors with a compact design are particularly built for orchard chores; •The 4-cylinder diesel engine with two-stage parallel turbo features high horsepower with less vibration and fuel consumption; •14F/4R gears offer a wide speed range for a variety of uses; •The double action clutches separately control driven wheels and PTO, which improves productivity; •The hydraulic disc brake results in easy-to-control feel as it offers strong stopping power; •The hydrostatic steering unit ensures precise control and requires less operator effort; •Gear shifting synchronizer is optional.
