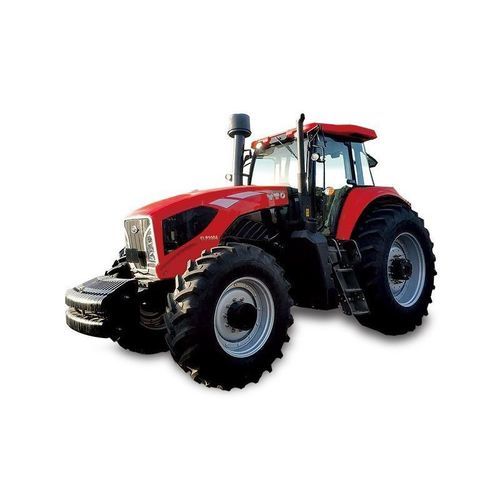

Utility tractor ELP3004

hydrostaticpower-shift6-cylinder

Overview
YTO utility tractors ELP2604/ELP2804/ELP3004/ELZ2804/ELZ3004 provide 260–300 HP for heavy field work, combining an air-cooled 6‑cylinder turbocharged diesel engine with a protected cab, robust front axle and versatile transmission options.

Key features

• Versatile performance for ploughing, transport and PTO-driven implements;
• Air-cooled 6‑cylinder turbocharged diesel engine delivering high rated horsepower with optimized fuel consumption;
• Multiple gear configurations (16F+16R or 40F+40R) and mechanical or power shift options to match operational needs;
• Hydrostatic steering for precise control and reduced operator effort;
• Wet disc brakes for reliable stopping power in field conditions;
• Electro-hydraulic one-button PTO and differential lock for simplified implement engagement;
• Carraro front axle for high reliability and durability under load;
• Enclosed cab with wide visibility and climate control for operator comfort during long shifts.

Photos

• Ploughing
• Wide view
• Suspension seat
• Lift cylinder

Specifications (table)
Model: ELP2604 | ELP2804 | ELP3004 | ELZ2804 | ELZ3004
Engine type: Air-cooled 6-cylinder turbocharged diesel engine
Rated engine HP (kW): 191.5 (260) | 205 (279) | 220.6 (300) | 205 (279) | 220.6 (300)
Engine speed (rpm): 2200
Clutch: Single-action (some models) | Torsional shock absorbers (some models)
Gears: 16F+16R (some models) | 40F+40R (other models)
Gear shift mode: Mechanical (some models) | Power shift (other models)
Speed range (km/h): 3.19-38.9 | 0.3-36.8
Brake: Wet, disc
Rear PTO (rpm): 540/1000
Lift capacity (pivot point) (kN): ≥75
Hydraulic outputs (set): 4
Dimensions (L*W*H) (mm): 5730*2890*3500 | 5935*2760*3350
Wheel base (mm): 3104 | 3120
Ground clearance (mm): 460 | 495
Wheel track (F/R) (mm): 1591-2235/1849-2165 | 2050-2250/2050-2300
Min. turning radius (m): 8±0.3 | 10±0.3
Tyre (F/R): 600/70R30; 710/70R42

Technical specifications

• Model: YTO-ELP2604 / ELP2804 / ELP3004 / ELZ2804 / ELZ3004
• Engine type: Air-cooled 6-cylinder turbocharged diesel engine
• Rated engine HP (kW): ELP2604: 191.5 (260); ELP2804: 205 (279); ELP3004: 220.6 (300); ELZ2804: 205 (279); ELZ3004: 220.6 (300)
• Engine speed (rpm): 2200
• Clutch: Single-action or torsional shock absorbers (model dependent)
• Gears: 16F+16R or 40F+40R (model dependent)
• Gear shift mode: Mechanical or power shift (model dependent)
• Speed range (km/h): 3.19-38.9 or 0.3-36.8 (model dependent)
• Brake: Wet, disc
• Rear PTO (rpm): 540/1000
• Lift capacity (pivot point): ≥75 kN
• Hydraulic outputs (set): 4
• Dimensions (L*W*H) (mm): 5730*2890*3500 or 5935*2760*3350 (model dependent)
• Wheel base (mm): 3104 or 3120
• Ground clearance (mm): 460 or 495
• Wheel track (F/R) (mm): 1591-2235/1849-2165 or 2050-2250/2050-2300
• Min. turning radius (m): 8±0.3 or 10±0.3
• Tyre (F/R): 600/70R30; 710/70R42
